Name: Placa de bază Biostar H610MH D5 LGA1700 - A.W.P.S Store
Brand: BIOSTAR
SKU: H610MH D5
Price: 380.12 RON
Availability: OutOfStock

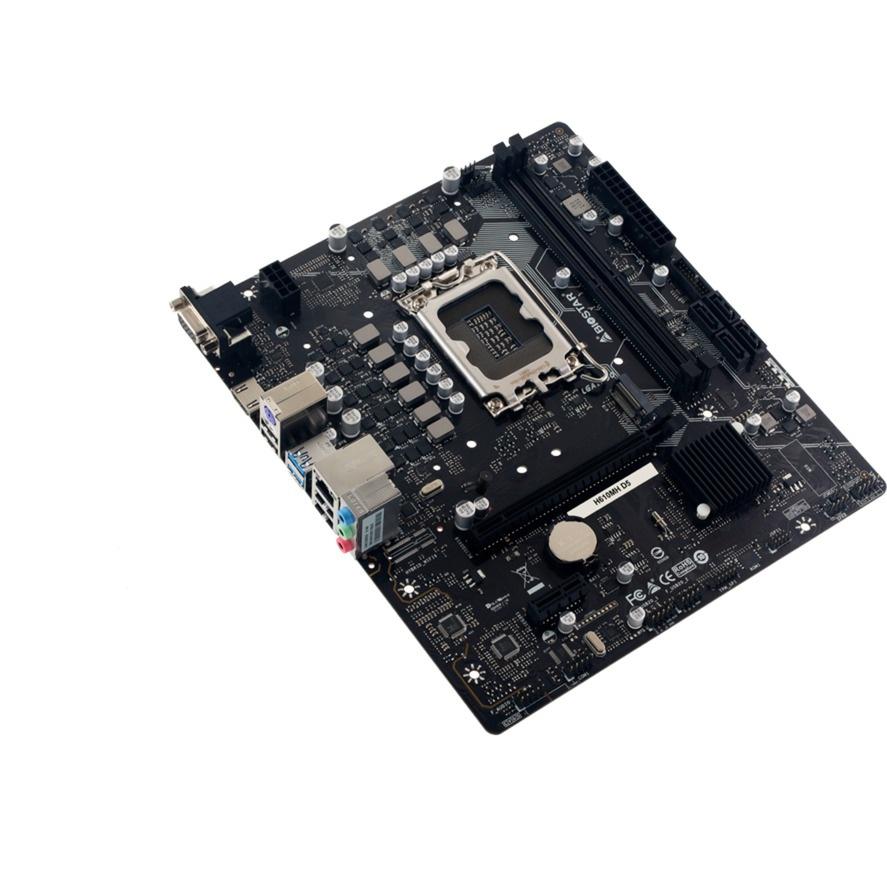

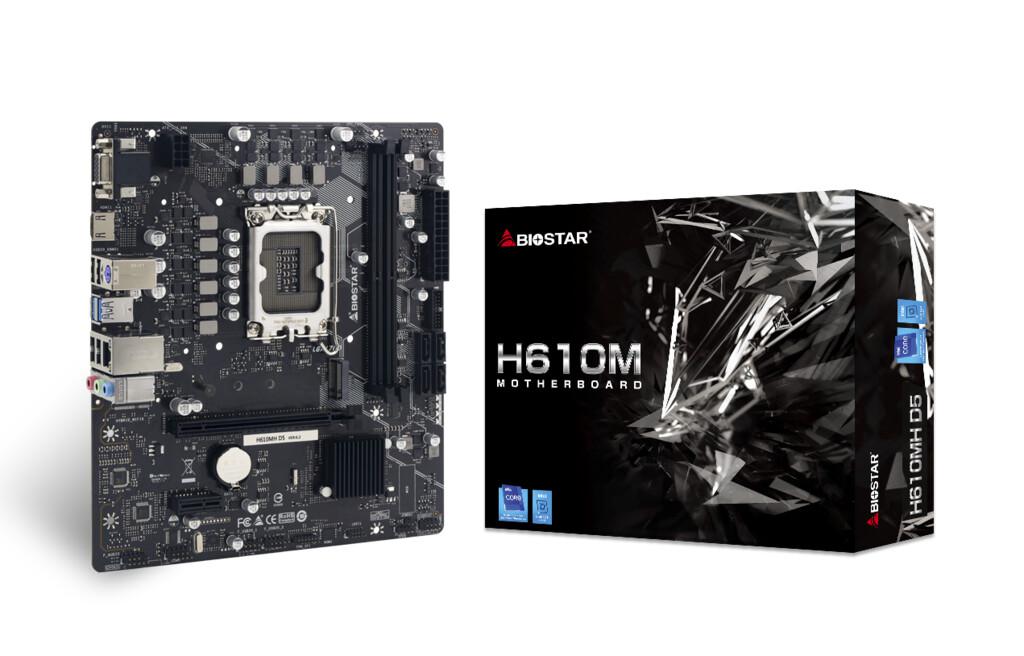

Placa de bază Biostar H610MH D5 LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza BIOSTAR H610MH D5 LGA1700, 2x DDR5, 1x M.2, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x HDMI 1x VGA, 4x SATA III 6GB/s, mATX

Specificație: Placa de bază Biostar H610MH D5 LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	VGA/HDMI
Wi-FI	No
Onboard-CPU	No
Component for	PC
Windows operating systems supported	Windows 10, Windows 11
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
Maximum internal memory	96 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
LAN controller	Intel® I219-V
VGA (D-Sub) ports quantity	1
HDCP	Yes
DVI-D ports quantity	0
DirectX version	12.0
Drivers included	Yes
Model Chipset	H610
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	2
Memorie maxima	96 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Memory slots type	DIMM
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Supported memory types	DDR5-SDRAM
Front panel connector	Yes
TPM connector	Yes
Motherboard chipset family	Intel
Processor socket	LGA 1700
Maximum number of SMP processors	1
ECC сompatibility	Non-ECC
Number of COM connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 2.0 connectors	4
PC health monitoring	CPU, Fan, Temperature, Voltage
Motherboard chipset	Intel H610
Power fan connector	Yes
BIOS type	UEFI
Supported memory clock speeds	4800,5600 MHz
Supported memory module capacities	8GB, 16GB, 24GB, 32GB, 48GB
Supported storage drive interfaces	M.2, PCI Express, PCI Express 3.0, SATA, SATA III
Bundled software	BullGuard
Microphone in	Yes
Headphone outputs	1
Depth	236 mm
Cables included	SATA
Width	208 mm
Producator	BIOSTAR
Garantie	24
