Name: Placa de bază Biostar A520MHP AM4 - A.W.P.S Store
Brand: BIOSTAR
SKU: A520MHP
Price: 271.02 RON
Availability: OutOfStock

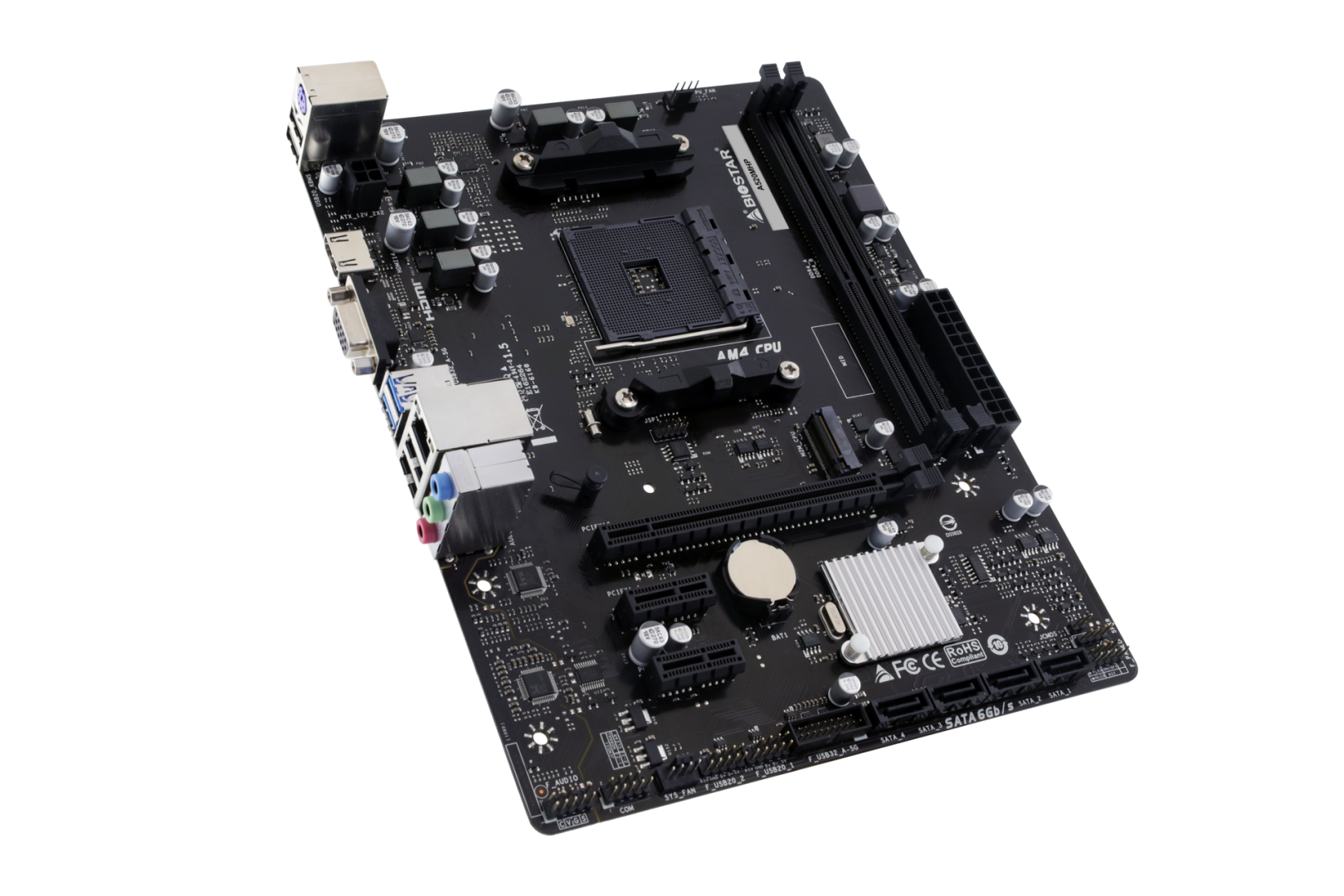

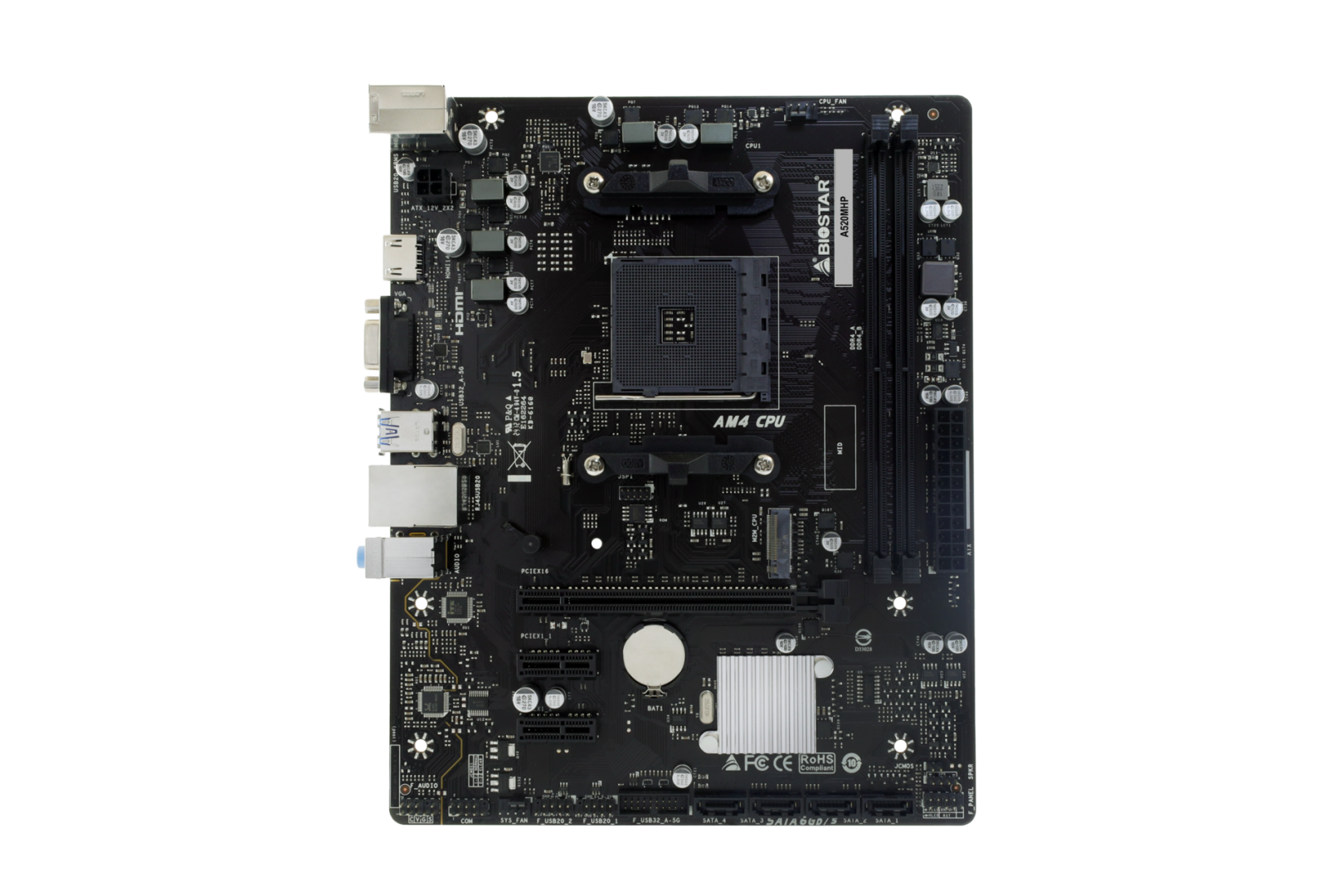

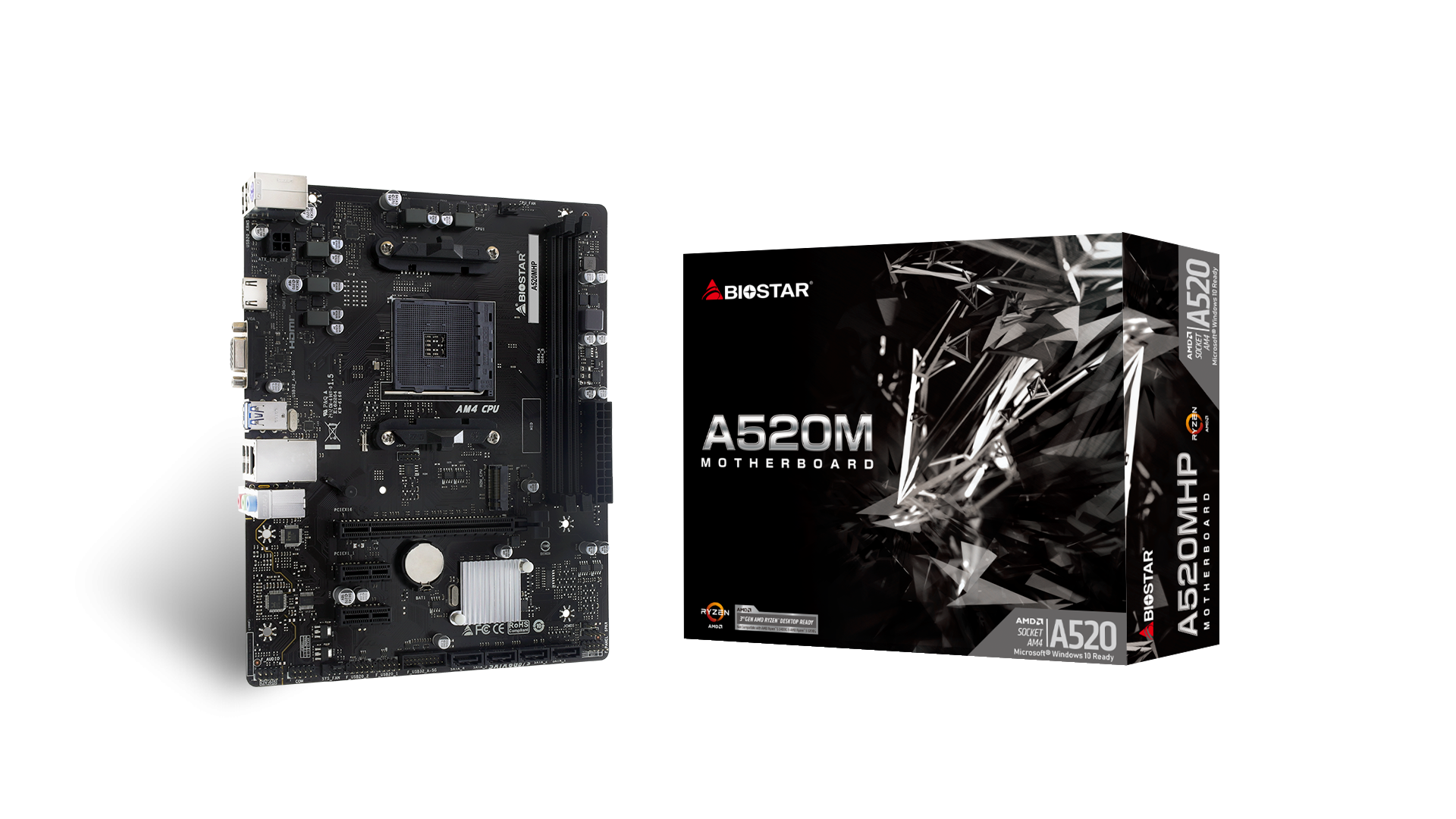

Placa de bază Biostar A520MHP AM4

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza BIOSTAR A520MHP AM4, 2x DDR4, 1x VGA 1x HDMI, 1x M.2, 2x PCIE 3.0 x16 2x PCIE 3.0 x1, 4x SATA 6GB/s, mATX

Specificație: Placa de bază Biostar A520MHP AM4

PCI	0
Serial-or-Paralel	No/No
Video-Connection	VGA/HDMI
Wi-FI	No
PCI-Ex16	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
Windows operating systems supported	Windows 10, Windows 11
Number of storage drives supported	1
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Maximum internal memory	64 GB
Ethernet LAN	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
Processor manufacturer	AMD
Memory slots type	SO-DIMM
USB 2.0 ports quantity	4
PCI Express x1 (Gen 3.x) slots	2
Audio output channels	7.1 channels
Line-in	Yes
PCI Express x16 slots	1
Audio Chip	Realtek ALC897
Number of memory slots	2
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
LAN controller	Realtek RTL8111H
Processor socket	Socket AM4
VGA (D-Sub) ports quantity	1
HDCP	Yes
DirectX version	12.0
Model Chipset	A520
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM4
Tip Memorie	DDR4
Numar sloturi memorie	2
Memorie maxima	64 GB
Tip slot interfata grafica	PCIe 3.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Number of HDDs supported	4
Front panel connector	Yes
ECC сompatibility	Non-ECC
RAID levels	0, 1, 10
Motherboard chipset	AMD A520
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA III
Supported memory module capacities	8GB, 16GB, 32GB
Supported processor sockets	Socket AM4
Audio connector	Yes
Power fan connector	Yes
BIOS type	UEFI
MB-Format	micro-ATX
MB-Socket	AM4
PCI-Ex1	2
RAM-Slots	2
USB3	2
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
USB Type-C	N/A
Supported memory clock speeds	2133,2400,2667,2933,3200,3600,3800,4000,4133,4266,4400 MHz
Bundled software	BullGuard (90 days FREE trial)
Microphone in	Yes
Headphone outputs	1
Depth	190 mm
Bluetooth	No
Power source type	ATX
Width	235 mm
Producator	BIOSTAR
Garantie	24
