Name: Placa de bază ASUS TUF Z790-PLUS D4 LGA1700 - A.W.P.S Store
Brand: ASUS
SKU: TUF Z790-PLUS D4
Price: 1170.00 RON
Availability: OutOfStock

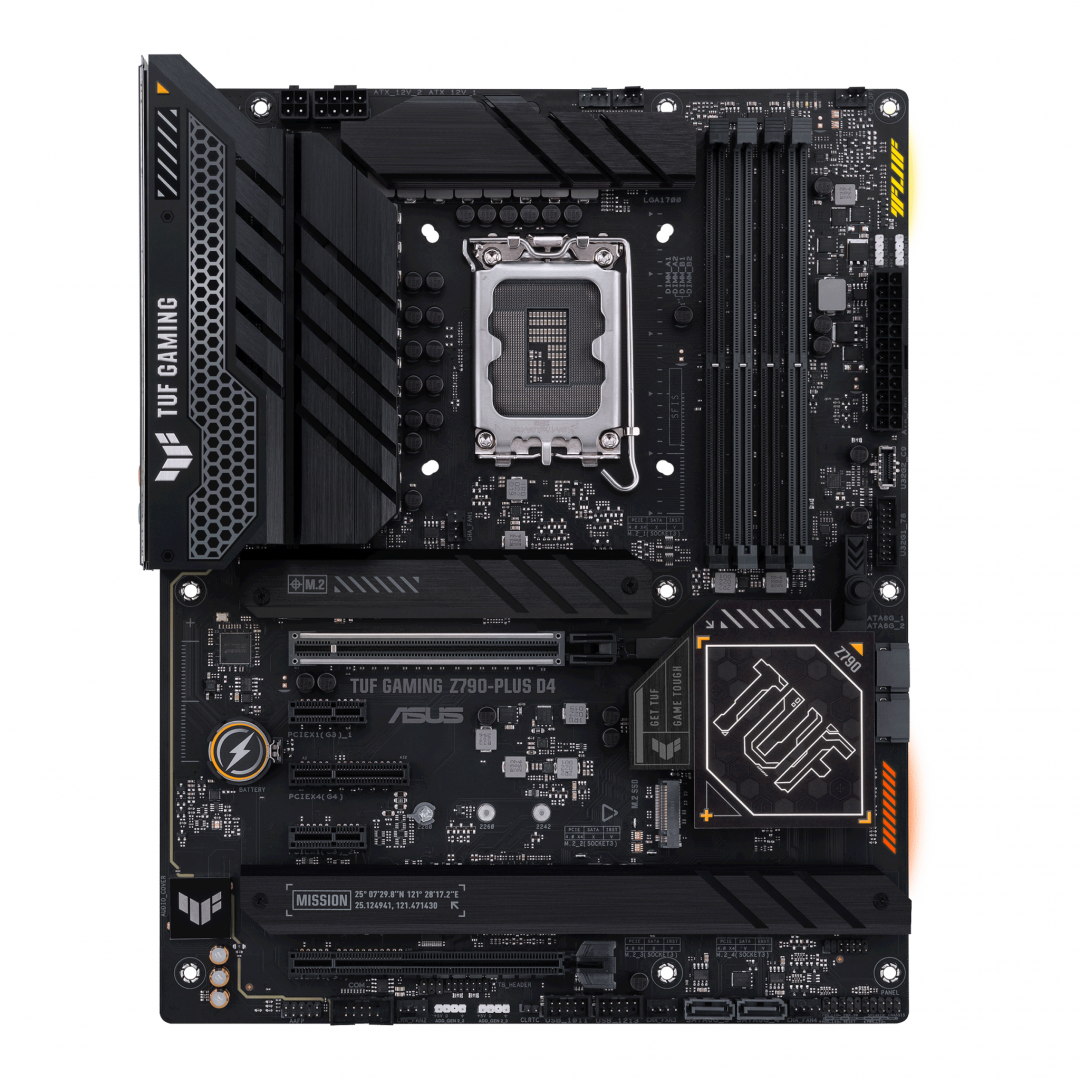

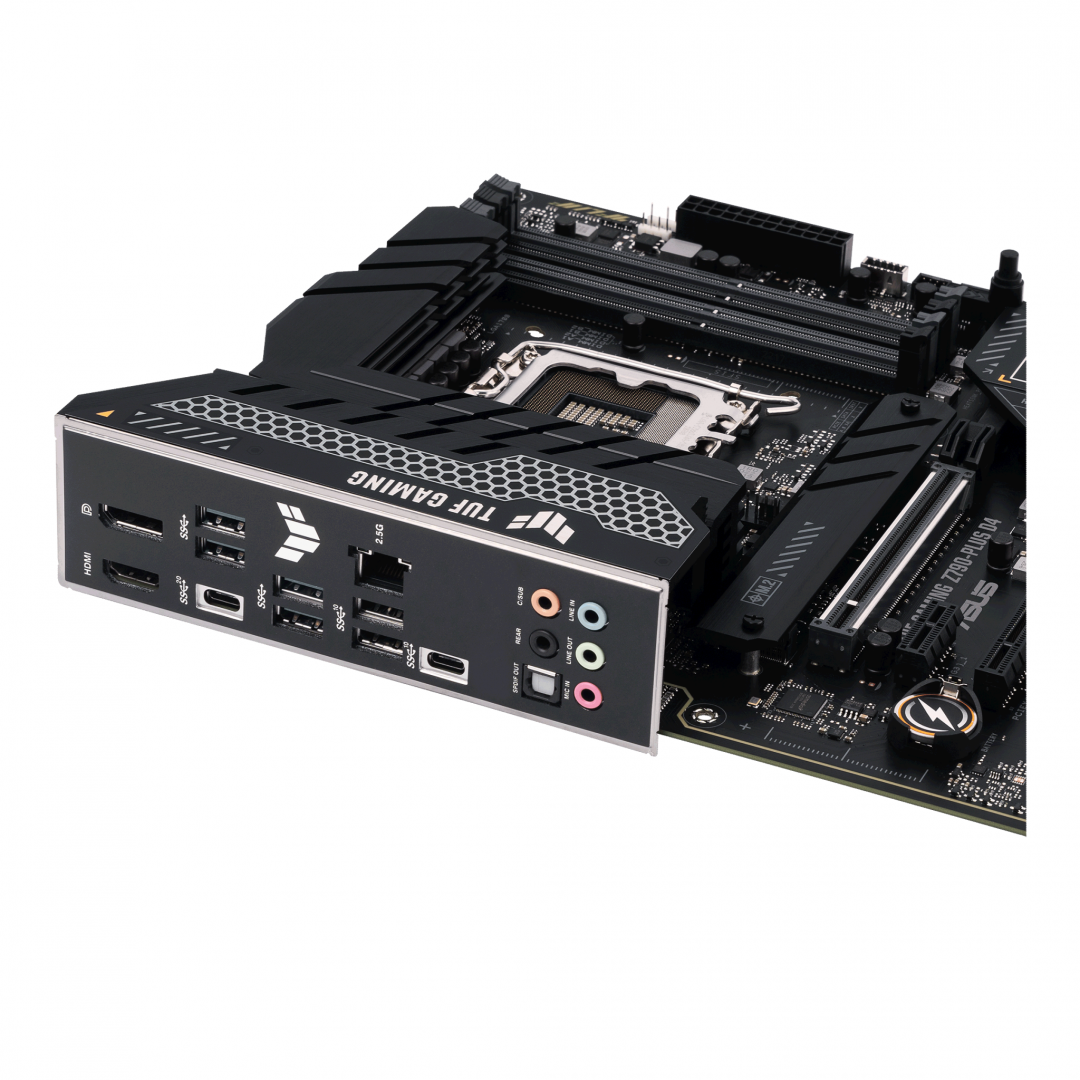

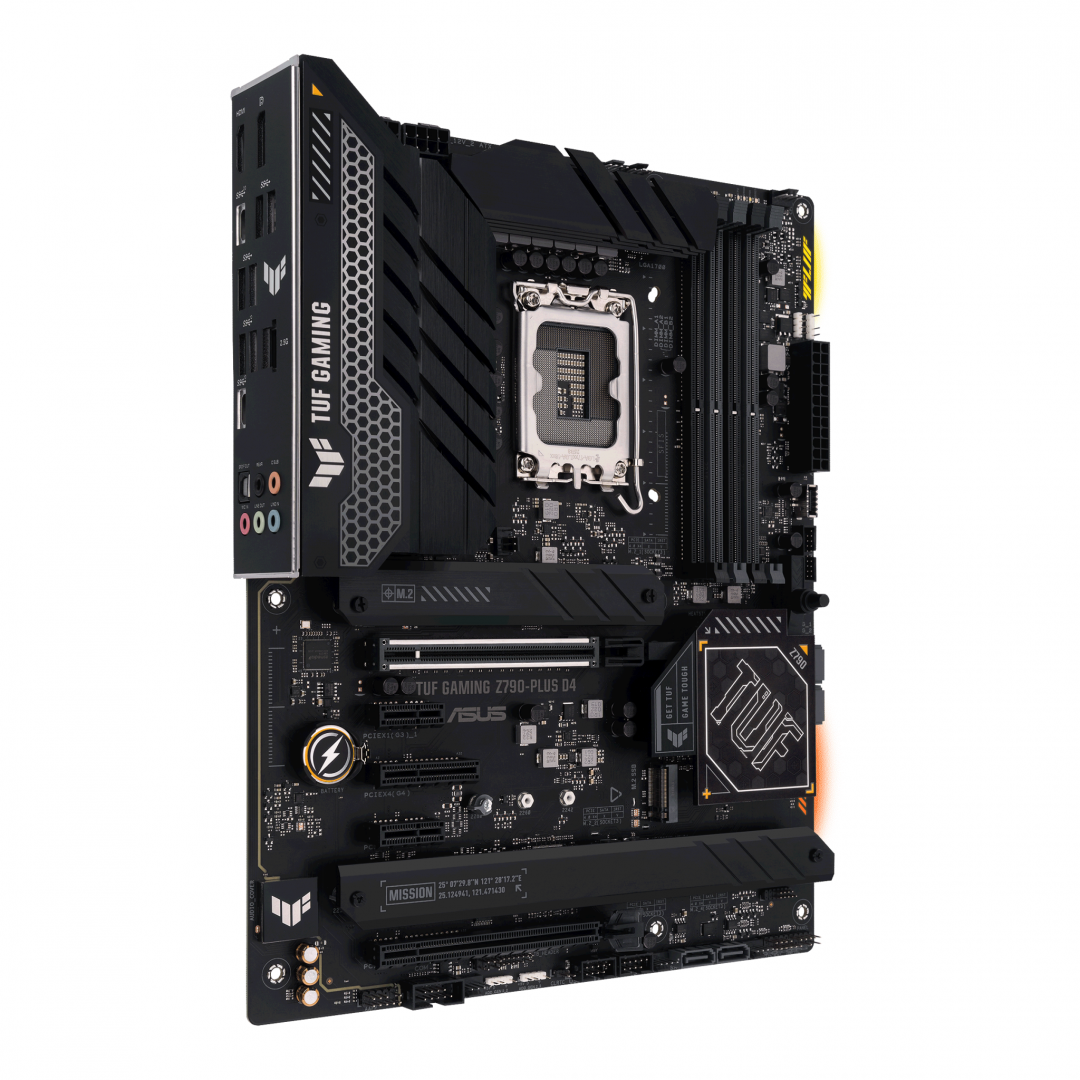

Placa de bază ASUS TUF Z790-PLUS D4 LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza Asus TUF Z790-PLUS D4 LGA 1700, 4x DDR4 DIMM dual channel, 2x PCI Express x16, 2x PCIe x1, 1x PCI 1x, 4x M.2, 4x SATA 6Gb/s, 8x USB, ATX

Specificație: Placa de bază ASUS TUF Z790-PLUS D4 LGA1700

PCI	1
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
PCI Express x1 (Gen 3.x) slots	2
Audio output channels	7.1 channels
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
PCI Express x4 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
S/PDIF out port	Yes
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Drivers included	Yes
Model Chipset	Z790
Gaming	Da
Format:	ATX
Soclu Procesor	Socket 1700
Tip Memorie	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	4
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
BIOS type	UEFI AMI
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of chassis fan connectors	4
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
Motherboard chipset family	Intel
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
12V power connector	Yes
ECC сompatibility	Non-ECC
Number of COM connectors	1
Number of storage drives supported	8
Thunderbolt headers	1
Number of M.2 (M) slots	4
Motherboard chipset	Intel Z790
Audio Chip	Realtek S1220A
BIOS memory size	192 Mbit
Supported memory clock speeds	5333 MHz
Microphone in	Yes
Headphone outputs	1
Weight	1.33 kg
Cables included	SATA
Width	305 mm
Depth	244 mm
Package width	340 mm
Power source type	ATX
Package weight	2.14 kg
Package height	275 mm
Package depth	70 mm
Height	49 mm
Producator	ASUS
Garantie	36
