Name: Placa de bază ASUS TUF GAMING B850M-PLUS AM5 - A.W.P.S Store
Brand: ASUS
SKU: TUF GAMING B850M-PLUS
Price: 1299.45 RON
Availability: OutOfStock

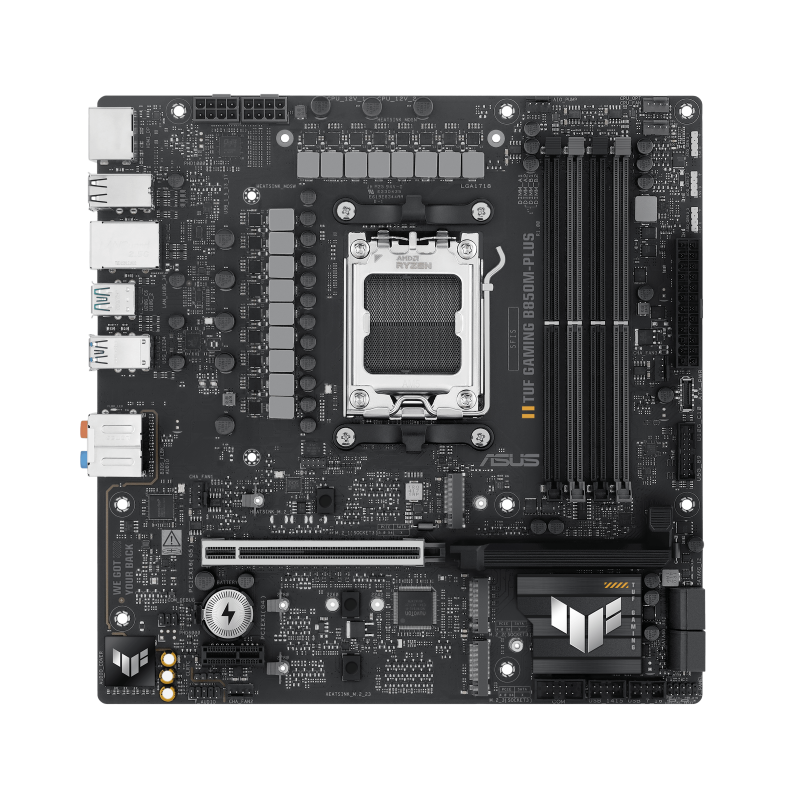

Placa de bază ASUS TUF GAMING B850M-PLUS AM5

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza ASUS TUF GAMIG B850M-PLUS AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 3x M.2, 4x SATA 6GB/s, mATX

Specificație: Placa de bază ASUS TUF GAMING B850M-PLUS AM5

PCI	0
Serial-or-Paralel	No/No
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
Processor manufacturer	AMD
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Maximum internal memory	192 GB
Screws included	Yes
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11
Model Chipset	B850
Gaming	Da
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	3
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
Number of storage drives supported	7
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Number of M.2 (M) slots	3
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
3rd M.2 highest PCI Express generation	4.0
12V power connector	Yes
S/PDIF out connector	Yes
Number of COM connectors	1
WiFi-AP antenna jack	1
Chassis intrusion connector	Yes
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Number of chassis fan connectors	3
Motherboard chipset	AMD B850
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
3rd M.2 largest key size	2280
PCI Express x1 (Gen 4.x) slots	1
Audio Chip	Realtek ALC1220P
Cables included	SATA
Width	244 mm
Depth	244 mm
Package depth	275 mm
Weight	1.19 kg
Package width	275 mm
Package height	67.5 mm
Package weight	1.65 kg
Producator	ASUS
Garantie	36
