Name: Placa de bază ASUS TUF GAMING B760M-PLUS LGA1700 - A.W.P.S Store
Brand: ASUS
SKU: TUF B760M-PLUS
Price: 1046.50 RON
Availability: OutOfStock

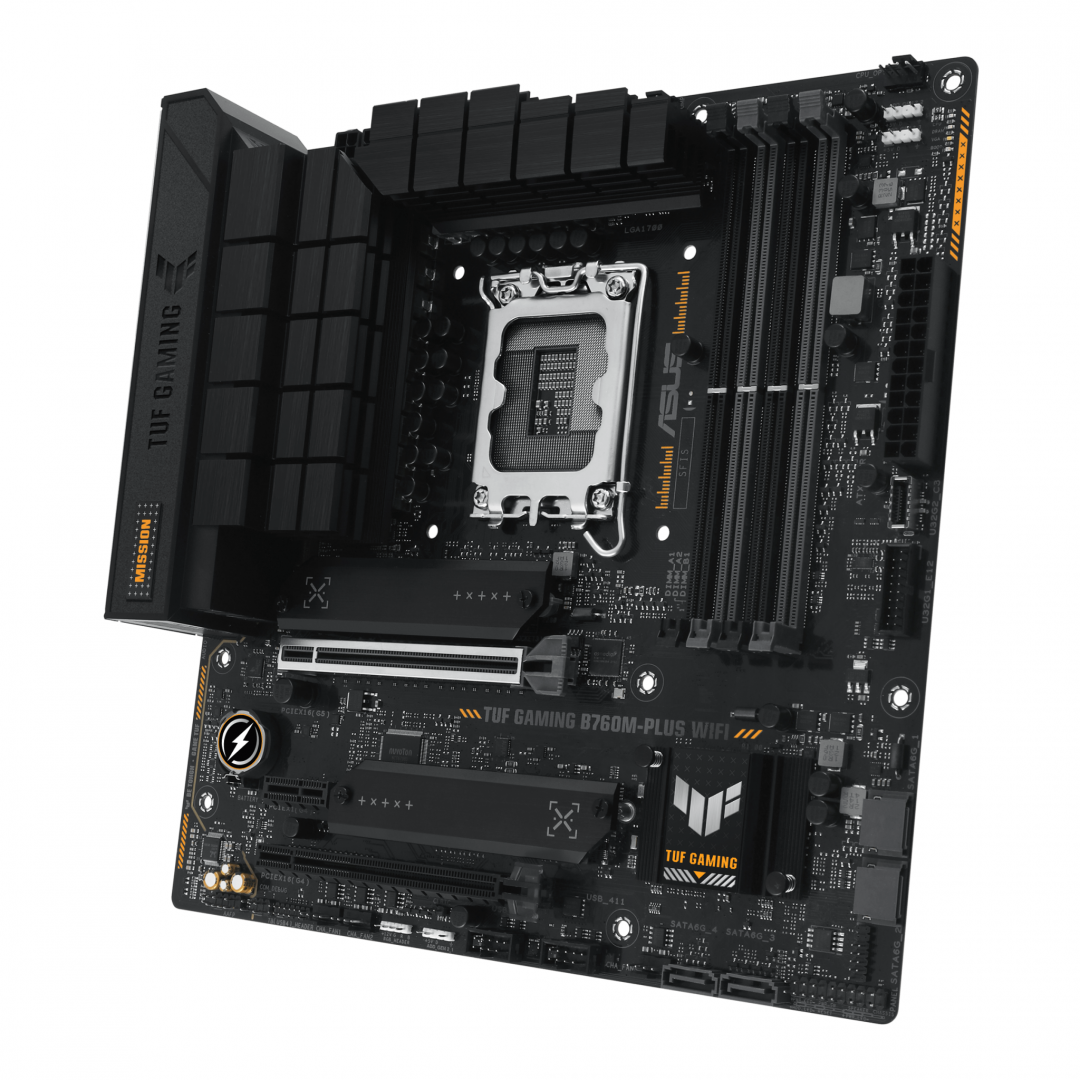

Placa de bază ASUS TUF GAMING B760M-PLUS LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza Asus TUF GAMING B760M-PLUS LGA1700, 4x DDR5, 1x DisplayPort, 1x HDMI, 2x PCIe x16, 1x PCIe x1, 2x M.2, 4x SATA 6Gbps, 2.5Gbps, mATX

Specificație: Placa de bază ASUS TUF GAMING B760M-PLUS LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
Windows operating systems supported	Windows 10, Windows 11
DisplayPort version	1.4
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
USB 2.0 ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Audio output channels	7.1 channels
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
Cooling type	Passive
S/PDIF out port	Yes
DisplayPorts quantity	1
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Model Chipset	B760
Gaming	Da
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Supported memory types	DDR5-SDRAM
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard chipset family	Intel
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
12V power connector	Yes
ECC сompatibility	Non-ECC
Number of storage drives supported	6
Motherboard chipset	Intel B760
BIOS memory size	128 Mbit
Thunderbolt headers	1
Peripheral (Molex) power connectors (4-pin)	1
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Number of chassis fan connectors	3
PCI Express x1 (Gen 4.x) slots	1
Microphone in	Yes
Cables included	SATA
Width	244 mm
Depth	244 mm
Power source type	ATX
Package weight	1.57 kg
Package depth	275 mm
Package width	275 mm
Package height	67.5 mm
Producator	ASUS
Garantie	36
