Name: Placa de bază ASUS TUF B760M-PLUS WIFI LGA1700 - A.W.P.S Store
Brand: ASUS
SKU: TUF B760M-PLUS WI
Price: 1118.00 RON
Availability: OutOfStock

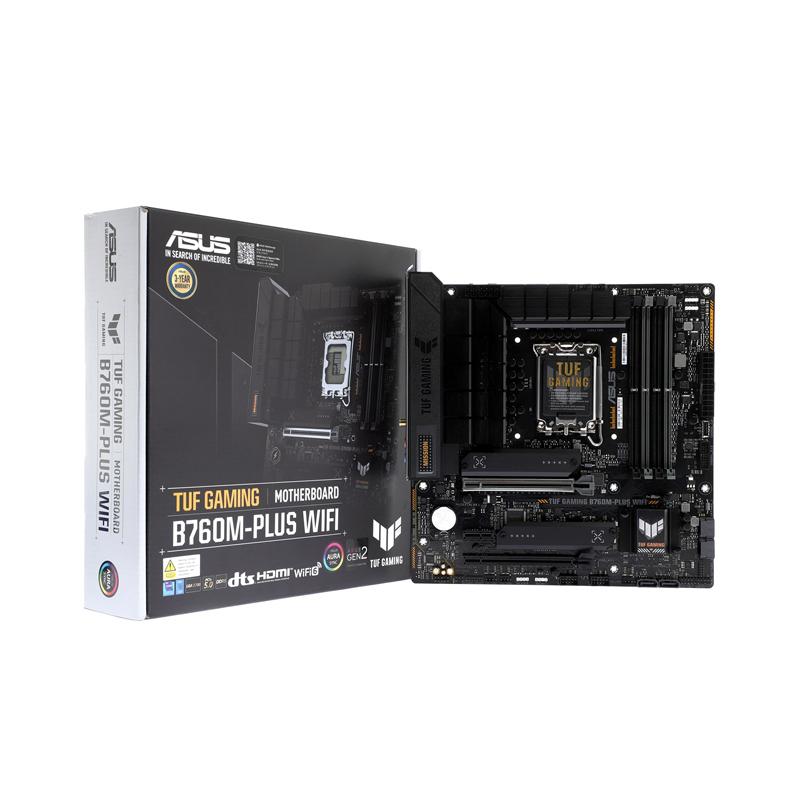

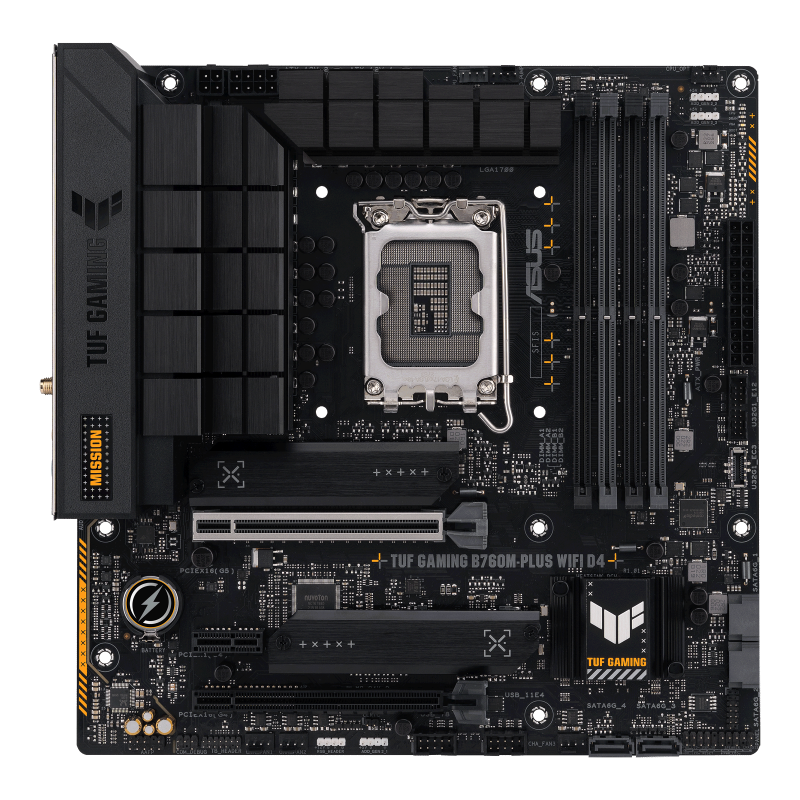

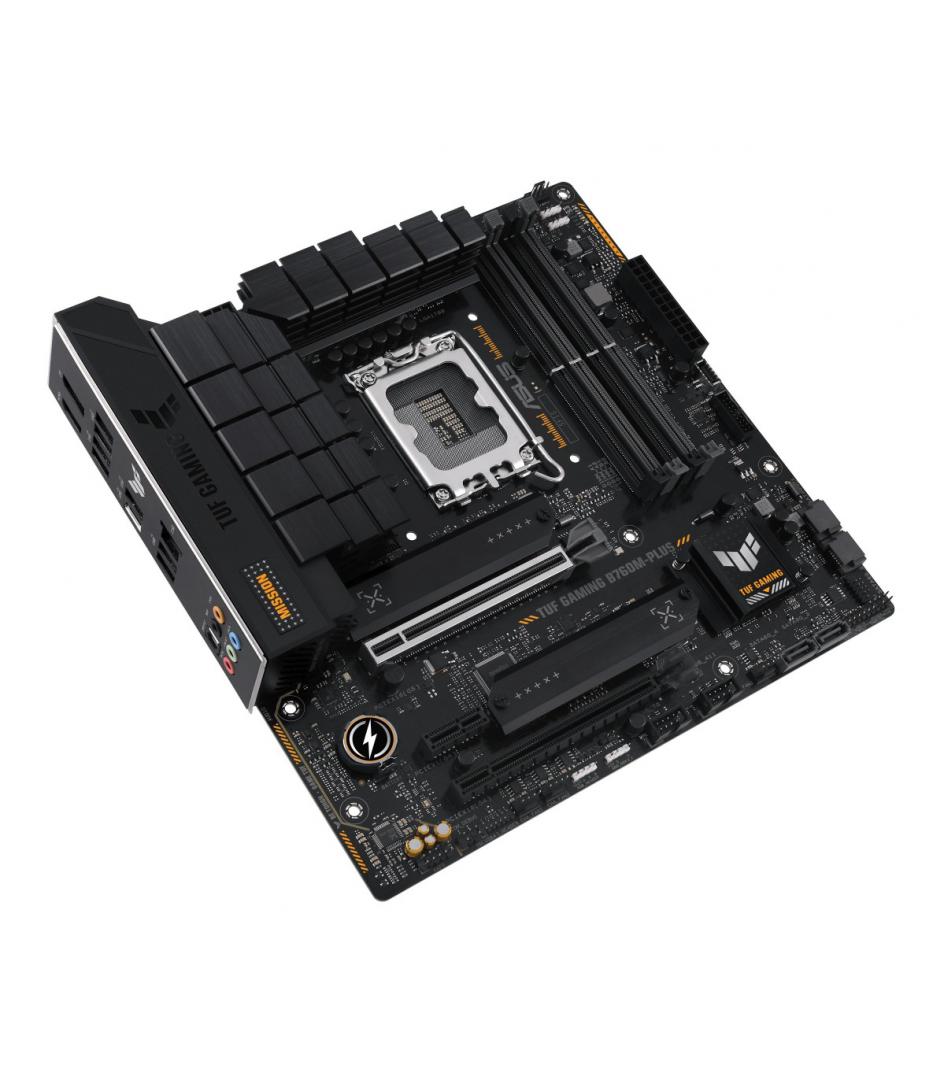

Placa de bază ASUS TUF B760M-PLUS WIFI LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza ASUS TUF B760M-PLUS WIFI LGA1700, 4x DDR5, 1x DisplayPort, 1x HDMI, 2x PCIe x16, 1x PCIe x1, 2x M.2, WIFI 6, 2.5Gbps LAN, ATX

Specificație: Placa de bază ASUS TUF B760M-PLUS WIFI LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
Memory channels	Dual-channel
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
USB 2.0 ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
PCI Express x1 (Gen 3.x) slots	2
Audio output channels	7.1 channels
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
S/PDIF out port	Yes
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11
Model Chipset	B760
Gaming	Da
Format:	ATX
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Supported memory types	DDR5-SDRAM
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard chipset family	Intel
Number of M.2 (M) slots	3
Processor socket	LGA 1700
Maximum number of SMP processors	1
Supported processor sockets	LGA 1700
12V power connector	Yes
ECC сompatibility	Non-ECC
Number of storage drives supported	6
Motherboard chipset	Intel B760
BIOS memory size	128 Mbit
Thunderbolt headers	1
Peripheral (Molex) power connectors (4-pin)	1
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Number of chassis fan connectors	3
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Microphone in	Yes
Headphone outputs	1
Bluetooth version	5.2
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Width	244 mm
Depth	244 mm
Package depth	275 mm
Package width	275 mm
Package height	67.5 mm
Package weight	1.65 kg
Producator	ASUS
Garantie	36
