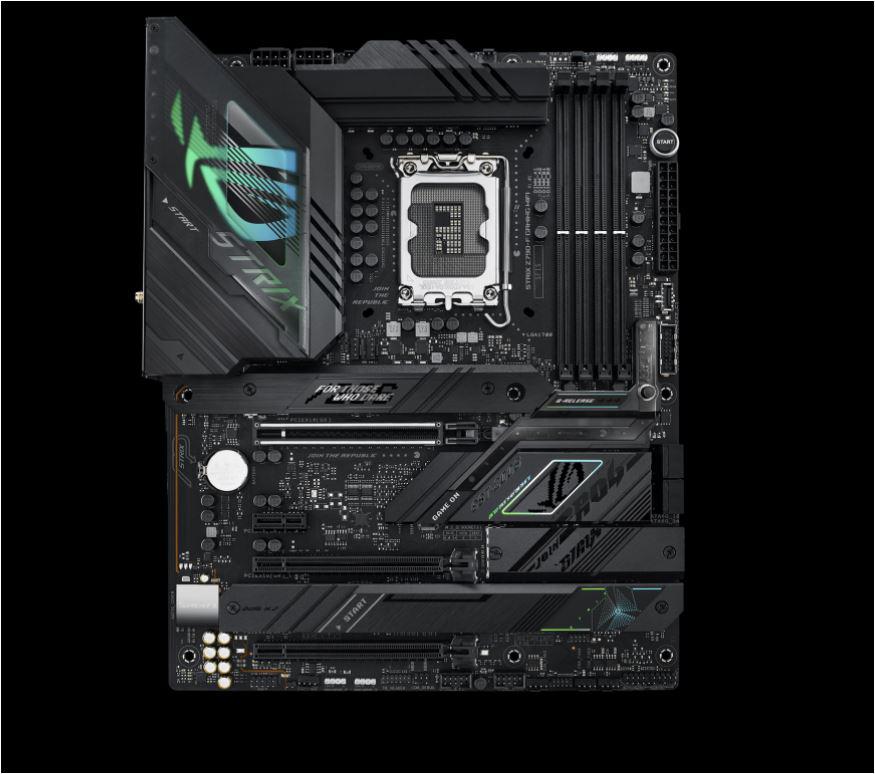

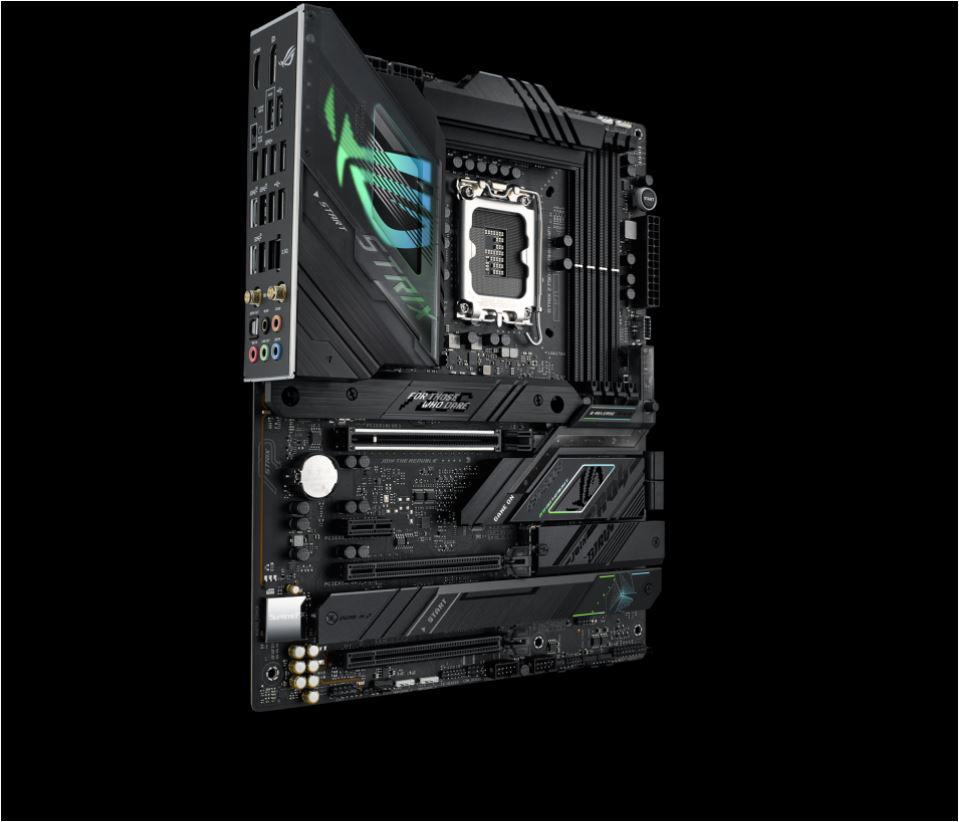

Placa de bază ASUS ROG STRIX Z790-F D5 GAMING WIFI

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza Asus ROG STRIX Z790-F D5 GAMING WIFI LGA 1700, 4 x DDR5 DIMM dual channel, 3x PCI Express x16, 1x PCI x1, 4x M.2, 4x SATA 6Gb/s, 12x USB, ATX

Specificație: Placa de bază ASUS ROG STRIX Z790-F D5 GAMING WIFI

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
Windows operating systems supported	Windows 10, Windows 11
DisplayPort version	1.4
Memory channels	Dual-channel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Processor manufacturer	AMD
USB 2.0 ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
Supported storage drive types	HDD & SSD
S/PDIF out port	Yes
PCI Express x16 (Gen 4.x) slots	2
Maximum internal memory	192 GB
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Drivers included	Yes
Model Chipset	Z790
Gaming	Da
Format:	ATX
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Nu
USB Type-C	Da
HDMI	Nu
Thunderbolt	Nu
Sloturi M.2	4
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Supported memory types	DDR5-SDRAM
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
Motherboard chipset family	Intel
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
12V power connector	Yes
Clear CMOS button	Yes
ECC сompatibility	Non-ECC
Thunderbolt headers	1
Number of M.2 (M) slots	4
Back-to-BIOS button	Yes
Supported memory clock speeds	7800 MHz
Number of chassis fan connectors	5
Motherboard chipset	Intel Z790
Audio Chip	Realtek ALC4080
Compatible processor series	Intel® Celeron®, Intel® Pentium® Gold
Microphone in	Yes
Headphone outputs	1
Bluetooth version	5.3
Cables included	SATA
Width	305 mm
Depth	244 mm
Power source type	ATX
Package height	290 mm
Package weight	2.25 kg
Package width	368 mm
Package depth	293 mm
Producator	ASUS
Garantie	36
