Name: Placa de bază ASUS PRIME Z790M-PLUS LGA1700 - A.W.P.S Store
Brand: ASUS
SKU: PRIME Z790M-PLUS
Price: 1278.42 RON
Availability: OutOfStock

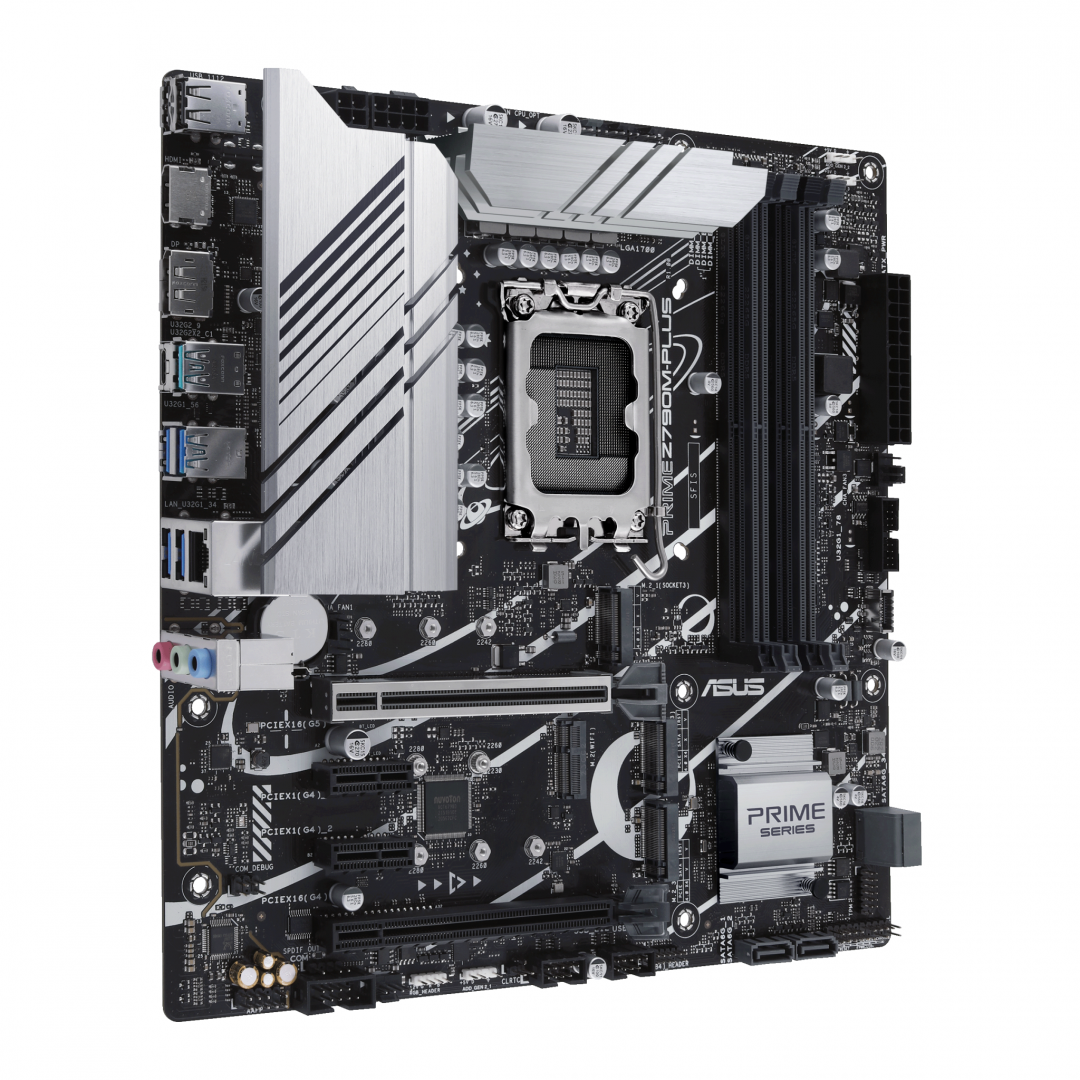

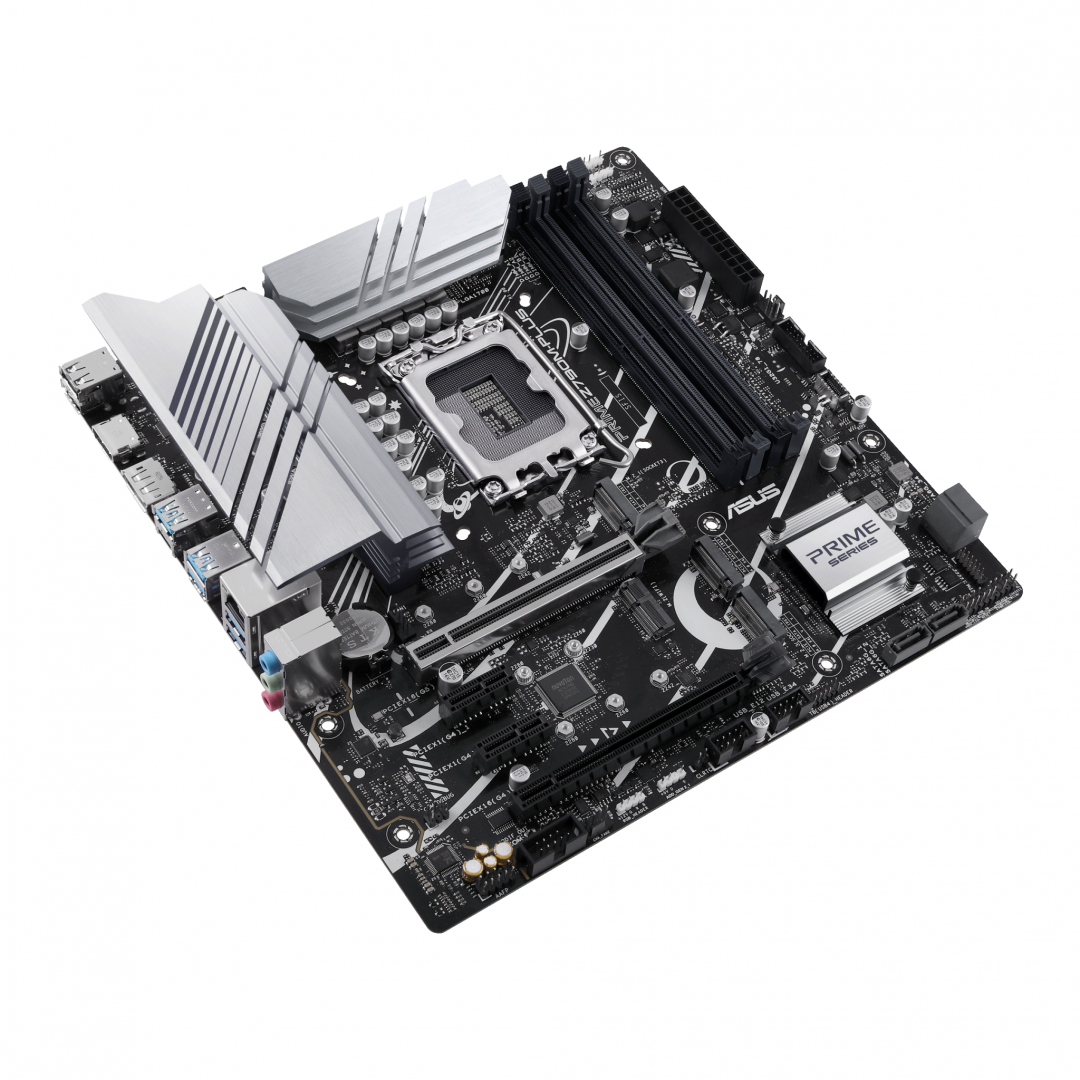

Placa de bază ASUS PRIME Z790M-PLUS LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza Asus Prime Z790M-PLUS LGA1700, 4x DDR5, 1x DisplayPort, 1x HDMI, 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 4.0 x1, 3x M.2, 4x SATA 6 Gbps, 1 Gbps LAN, mATX

Specificație: Placa de bază ASUS PRIME Z790M-PLUS LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
Windows operating systems supported	Windows 10, Windows 11
DisplayPort version	1.4
USB connector type	USB Type-A
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
Maximum internal memory	128 GB
HDMI version	2.0
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
On-board graphics card	No
Supported storage drive types	HDD & SSD
COM ports quantity	1
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
DVI-D ports quantity	0
Model Chipset	Z790
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	3
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
mSATA ports quantity	0
Supported memory types	DDR5-SDRAM
RAID levels	0, 1, 5, 10
RGB LED pin header	Yes
Motherboard chipset family	Intel
Number of M.2 (M) slots	3
Processor socket	LGA 1700
12V power connector	Yes
ECC сompatibility	Non-ECC
S/PDIF out connector	Yes
Number of COM connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Serial port headers	1
Thunderbolt headers	1
Motherboard chipset	Intel Z790
Peripheral (Molex) power connectors (4-pin)	1
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Number of chassis fan connectors	3
BIOS memory size	192 Mbit
PCI Express x1 (Gen 4.x) slots	2
Audio connector	Yes
Number of storage drives supported	4
Power fan connector	Yes
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA
Number of HDDs supported	3
Microphone in	Yes
Headphone outputs	1
Cables included	SATA
Width	244 mm
Depth	244 mm
Power source type	ATX
Product colour	Aluminium, Black
Producator	ASUS
Garantie	36
