Name: Placa de bază ASUS PRIME Z790-P D5 LGA1700 - A.W.P.S Store
Brand: ASUS
SKU: PRIME Z790-P
Price: 1137.37 RON
Availability: OutOfStock

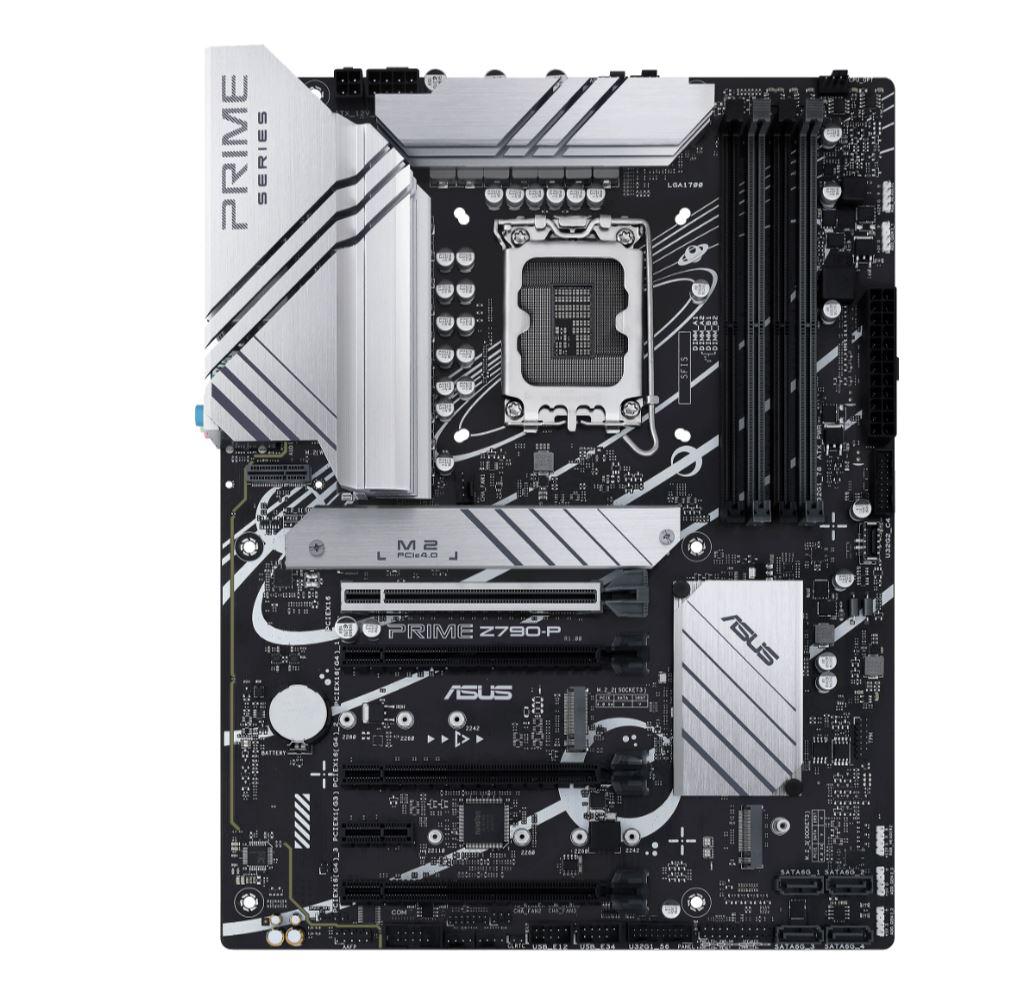

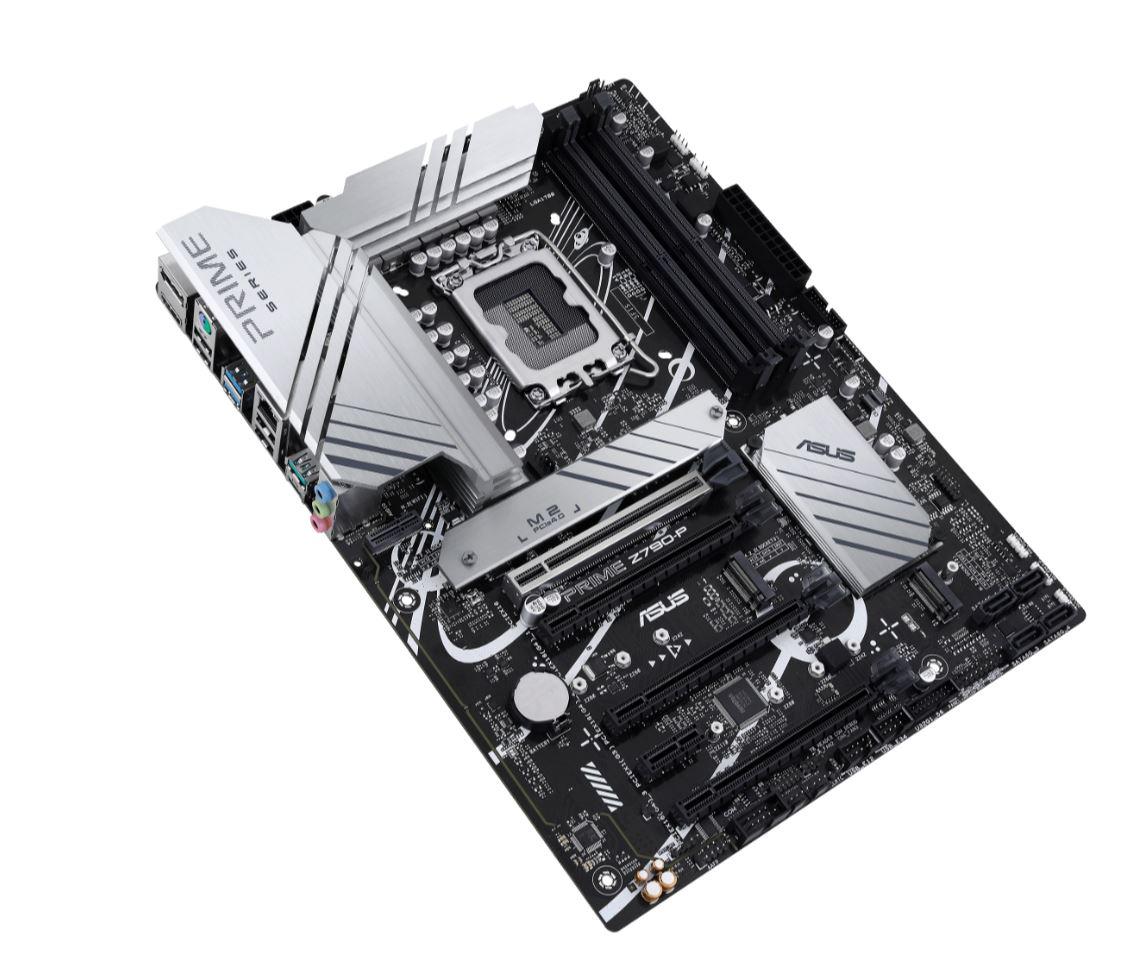

Placa de bază ASUS PRIME Z790-P D5 LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza Asus PRIME Z790-P D5 LGA 1700, 4 x DDR5 DIMM dual channel, 3x PCI Express x16, 1x PCIe x1, 3x M.2, 4x SATA 6Gb/s, 8x USB, ATX

Specificație: Placa de bază ASUS PRIME Z790-P D5 LGA1700

PCI	0
Serial-or-Paralel	No/No

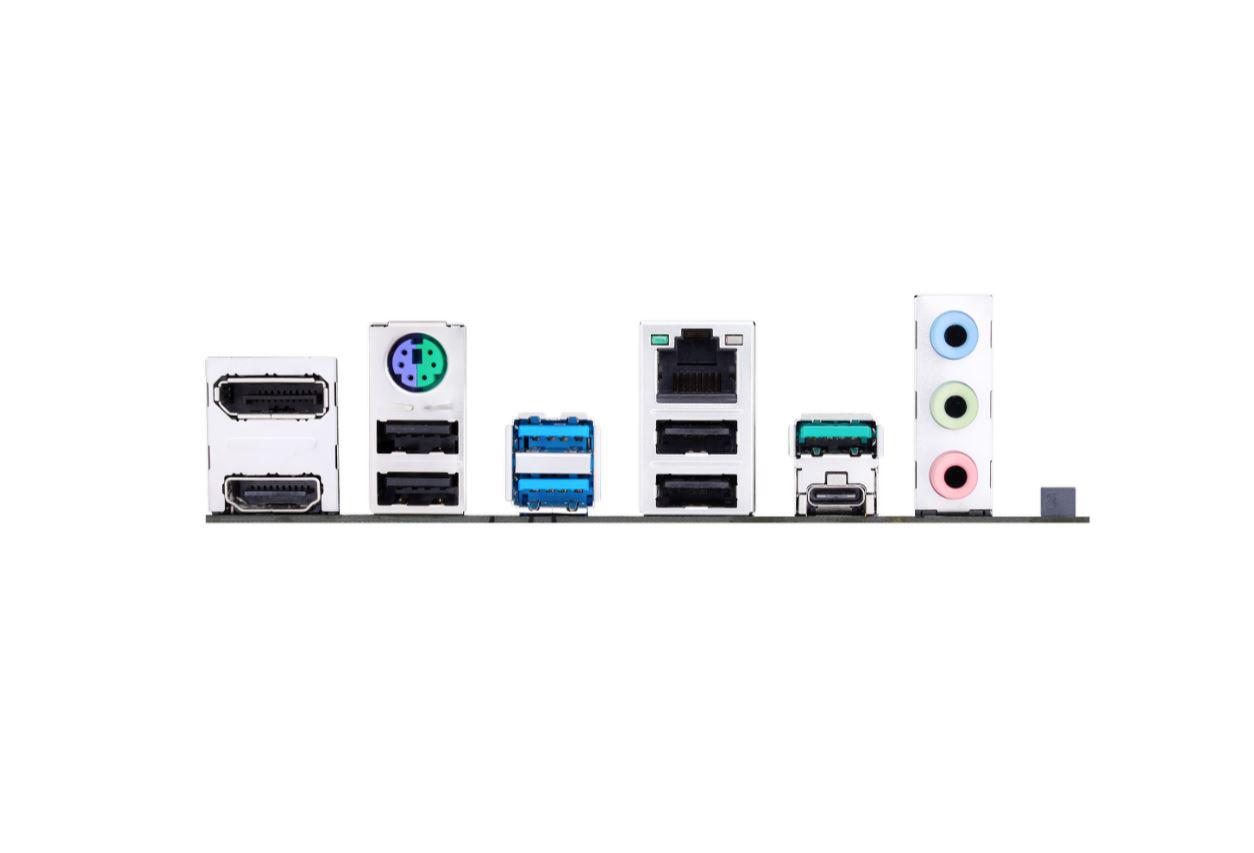

Video-Connection	HDMI/DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
Maximum internal memory	128 GB
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
Supported storage drive types	HDD & SSD
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Drivers included	Yes
Windows operating systems supported	Windows 10 x64, Windows 11
Model Chipset	Z790
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	3
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
BIOS type	UEFI AMI
Supported memory types	DDR5-SDRAM
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
Motherboard chipset family	Intel
Number of M.2 (M) slots	3
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
12V power connector	Yes
Clear CMOS button	Yes
ECC сompatibility	Non-ECC
S/PDIF out connector	Yes
Number of COM connectors	1
PCI Express x16 (Gen 4.x) slots	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Thunderbolt headers	1
Motherboard chipset	Intel Z790
Peripheral (Molex) power connectors (4-pin)	1
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Number of M.2 (E) slots	1
Number of chassis fan connectors	3
BIOS memory size	192 Mbit
Microphone in	Yes
Headphone outputs	1
Cables included	SATA
Width	305 mm
Package height	68 mm
Power source type	ATX
Package weight	1.58 kg
Package width	338 mm
Package depth	273 mm
Depth	234 mm
Producator	ASUS
Garantie	36
