Name: Placa de bază ASUS PRIME B860-PLUS WIFI LGA1851 - A.W.P.S Store
Brand: ASUS
SKU: PRIME B860-PLUS WIFI
Price: 1114.79 RON
Availability: OutOfStock

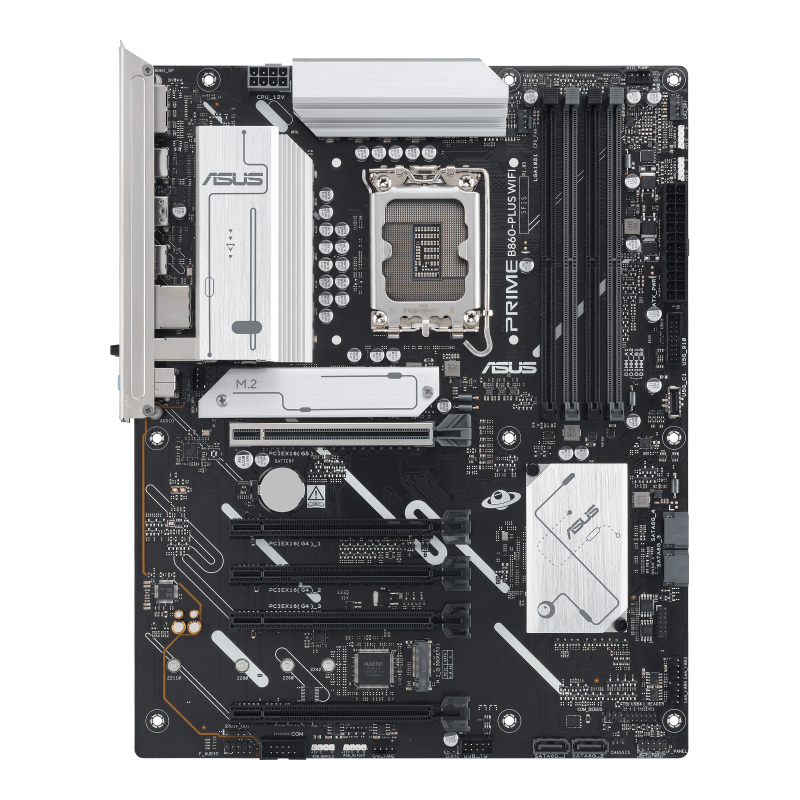

Placa de bază ASUS PRIME B860-PLUS WIFI LGA1851

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza ASUS PRIME B860-PLUS WIFI LGA1851, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 x16 4x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, ATX

Specificație: Placa de bază ASUS PRIME B860-PLUS WIFI LGA1851

PCI	0
Serial-or-Paralel	No/No
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
Memory channels	Dual-channel
Processor manufacturer	Intel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
PCI Express x16 (Gen 5.x) slots	1
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
Screws included	Yes
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11
Model Chipset	B860
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket 1851
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
Number of chassis fan connectors	4
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
Antenna included	Yes
12V power connector	Yes
ECC сompatibility	Non-ECC
Number of storage drives supported	6
S/PDIF out connector	Yes
Number of COM connectors	1
WiFi-AP antenna jack	1
Compatible processor series	Intel Core Ultra (Series 2)
Thunderbolt headers	1
Chassis intrusion connector	Yes
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
USB 2.0 connectors	1
PCI Express x16 (Gen 4.x) slots	4
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Cables included	SATA
Width	305 mm
Depth	244 mm
Package weight	1.66 kg
Package width	377 mm
Package depth	372 mm
Package height	302 mm
Producator	ASUS
Garantie	36
