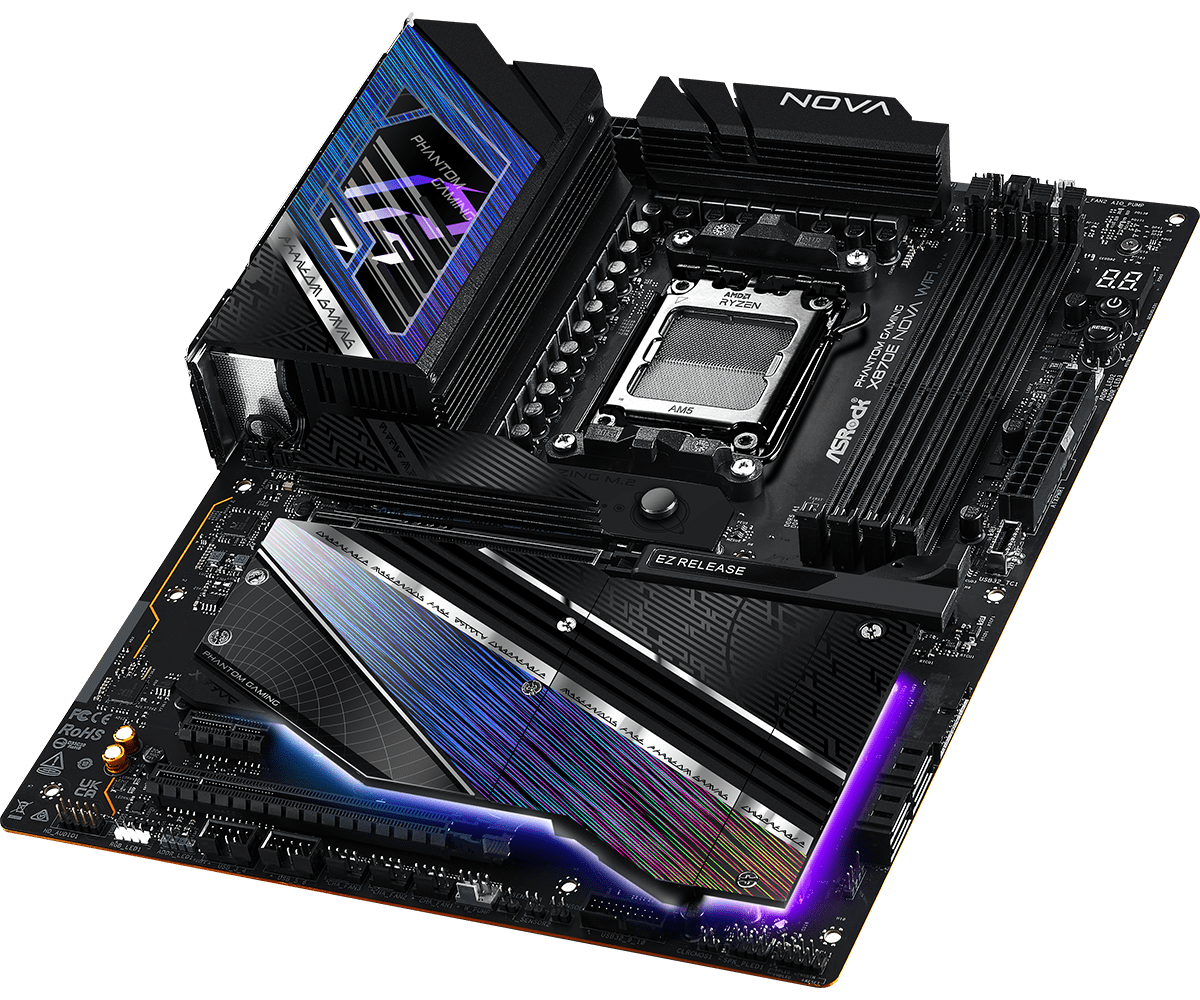

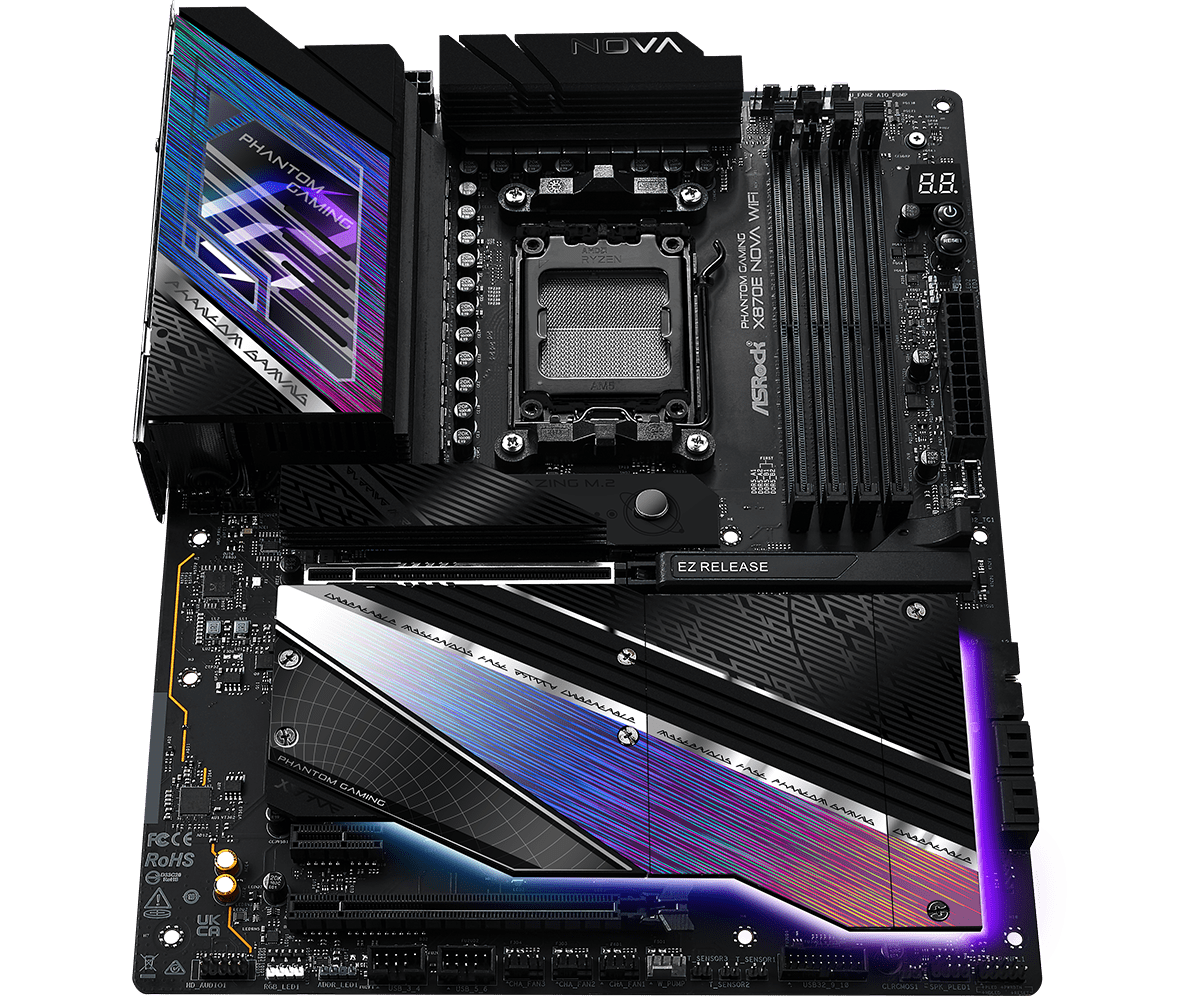

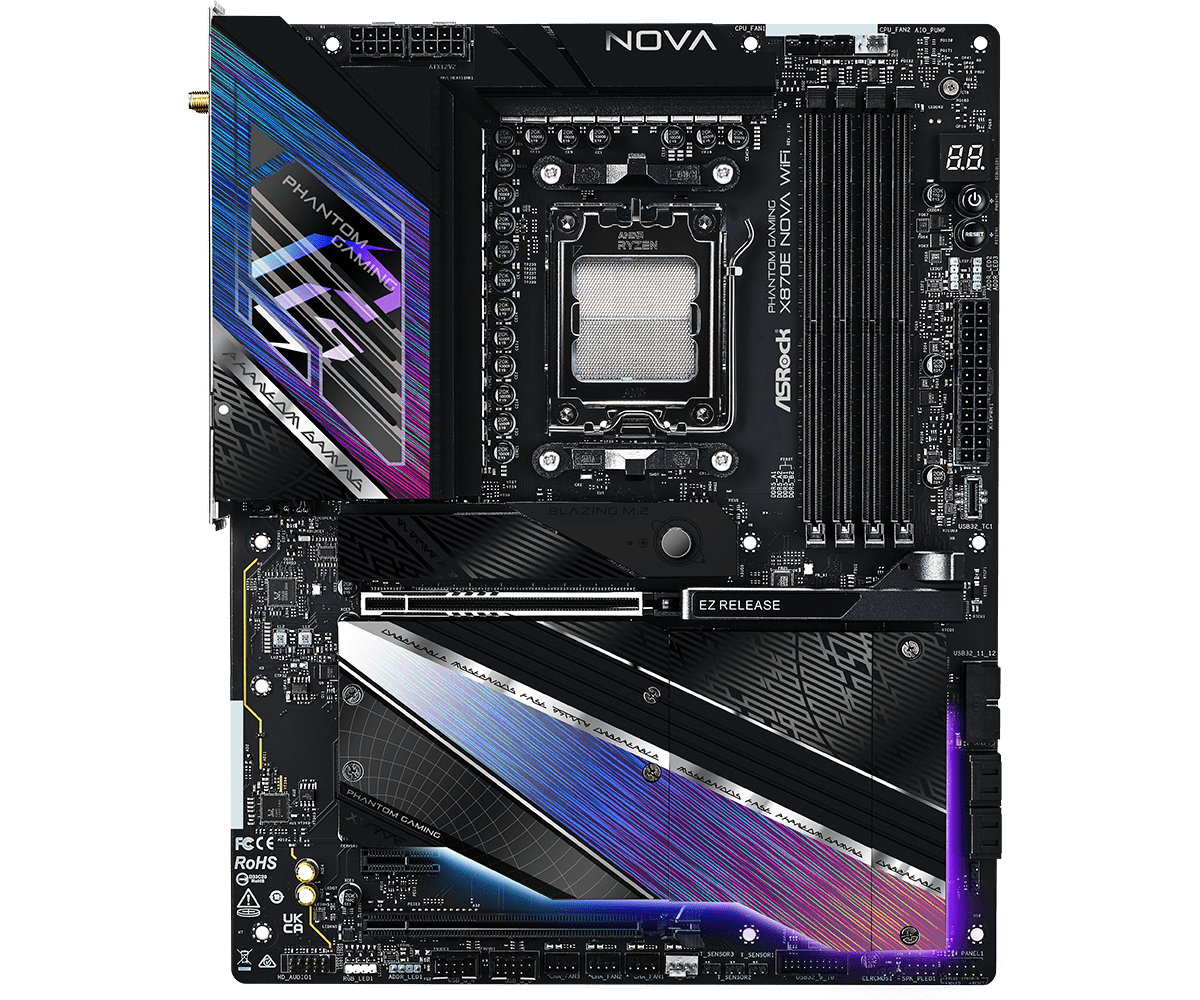

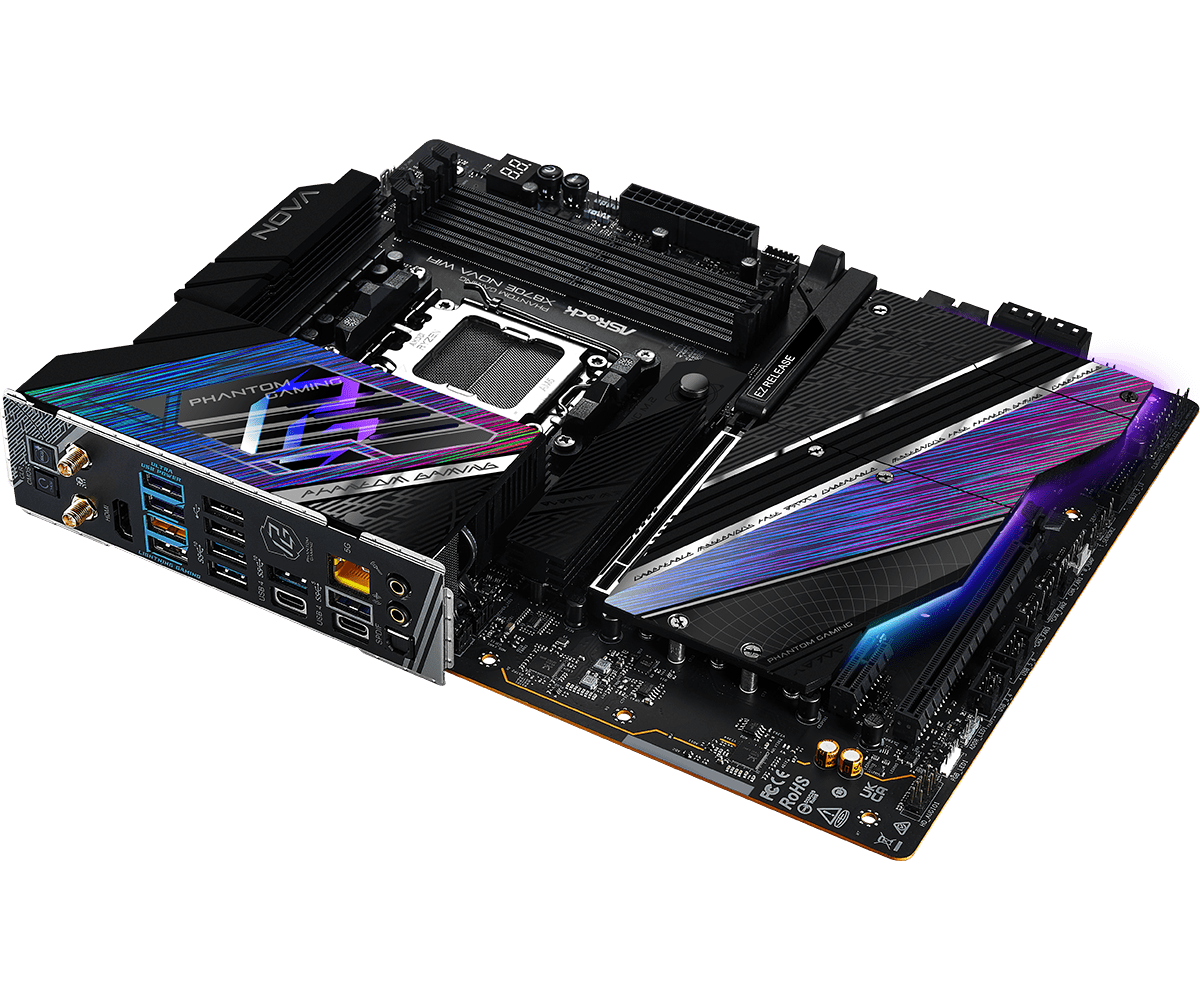

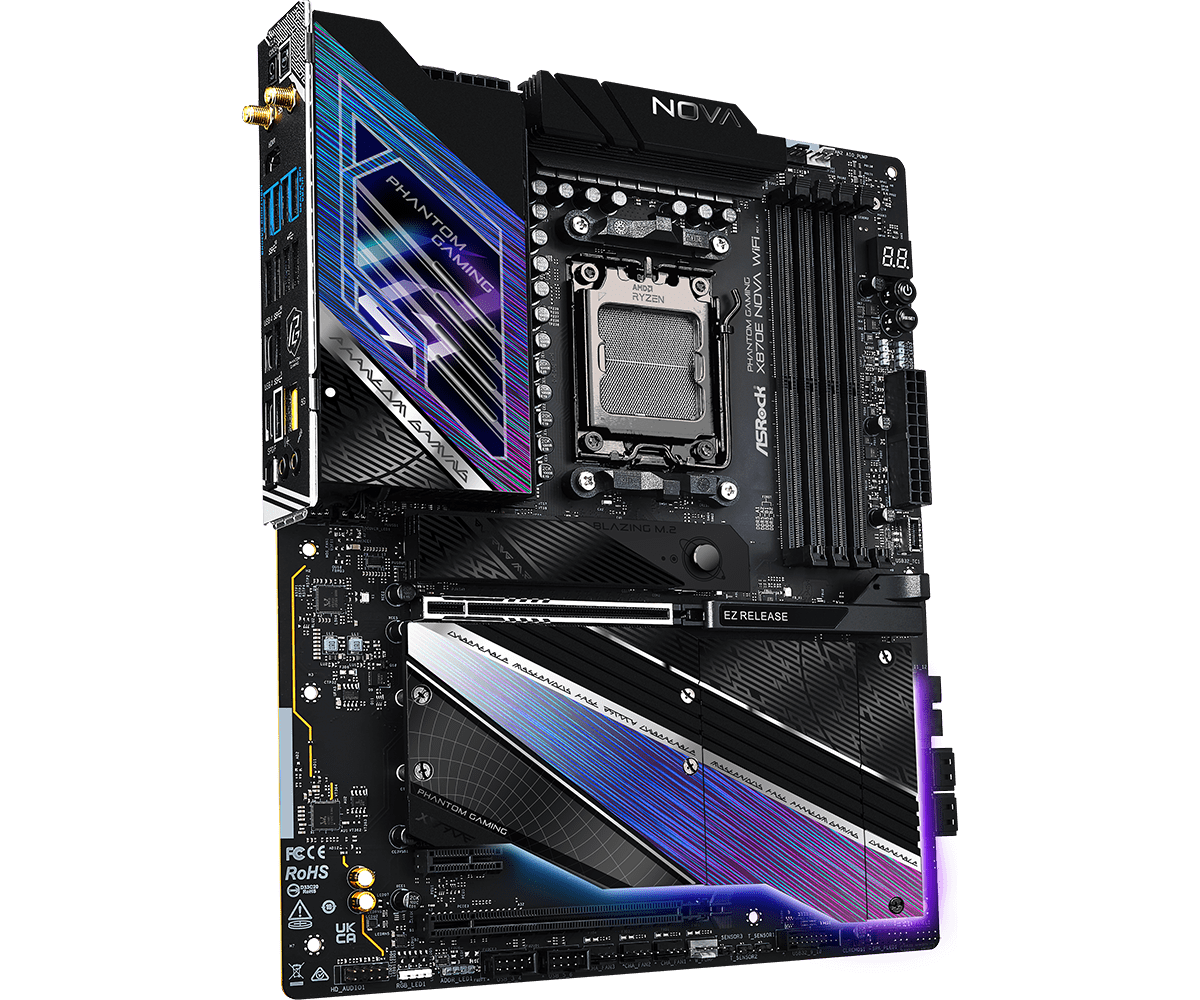

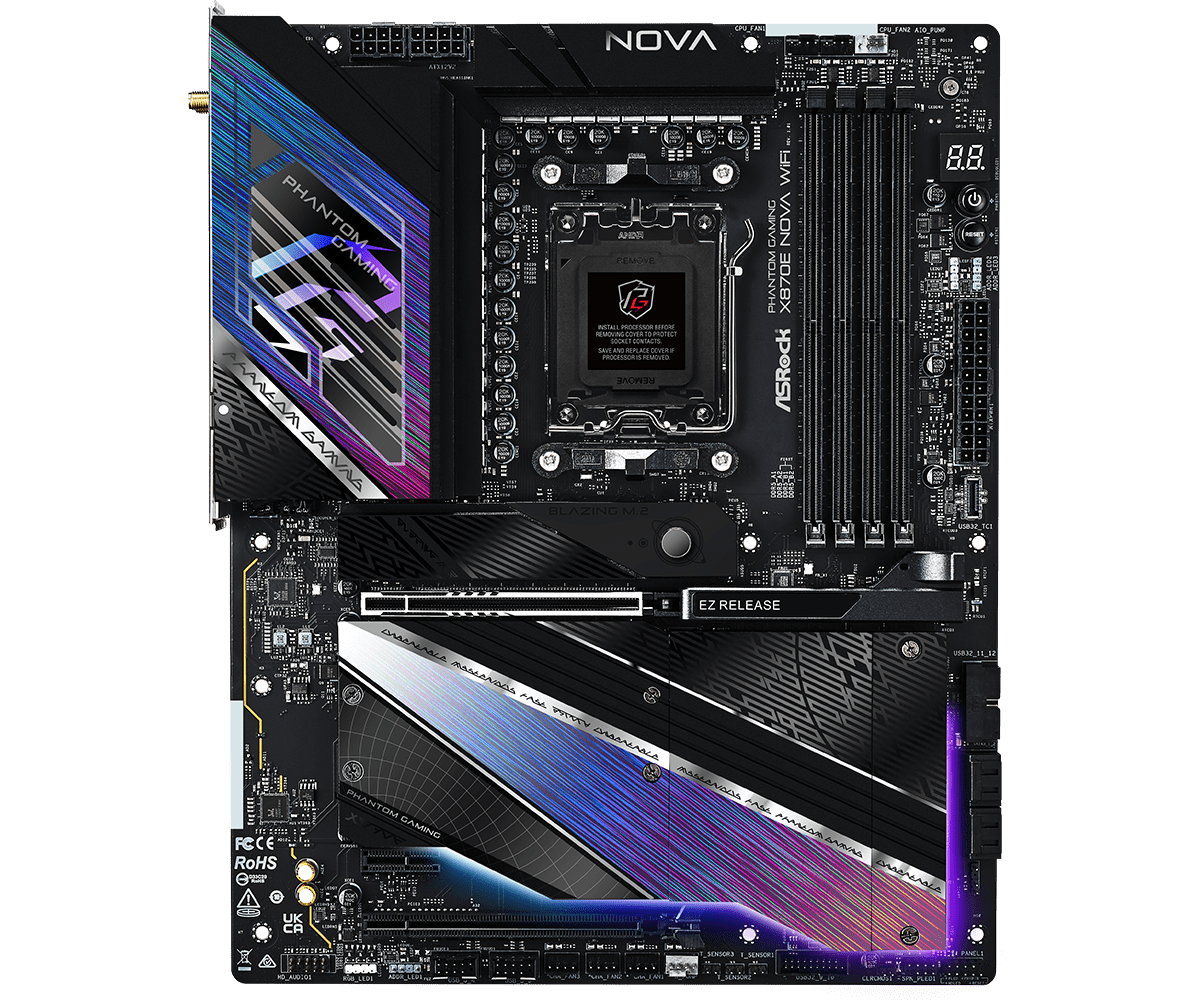

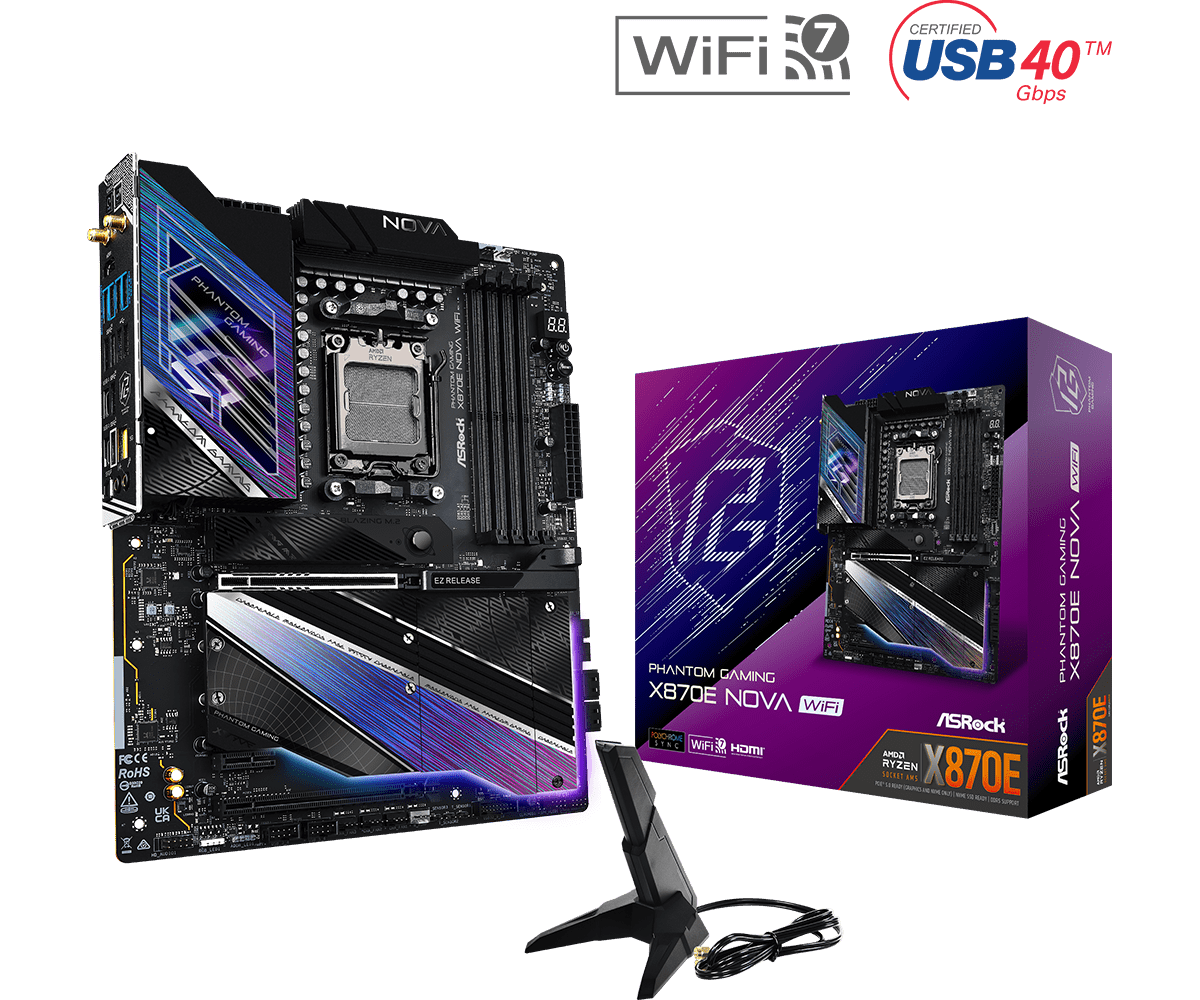

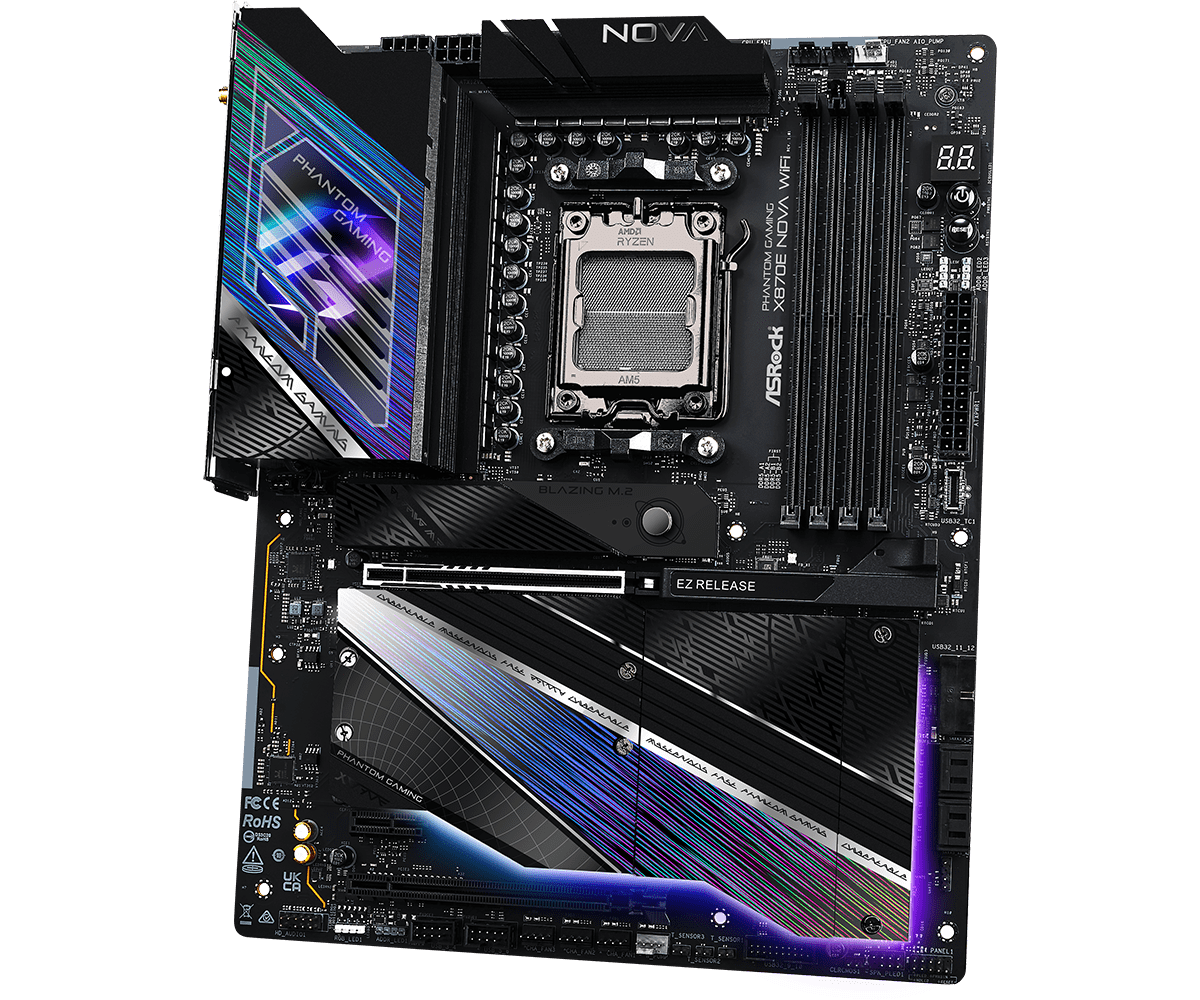

Placa de bază ASRock X870E NOVA WIFI AM5

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

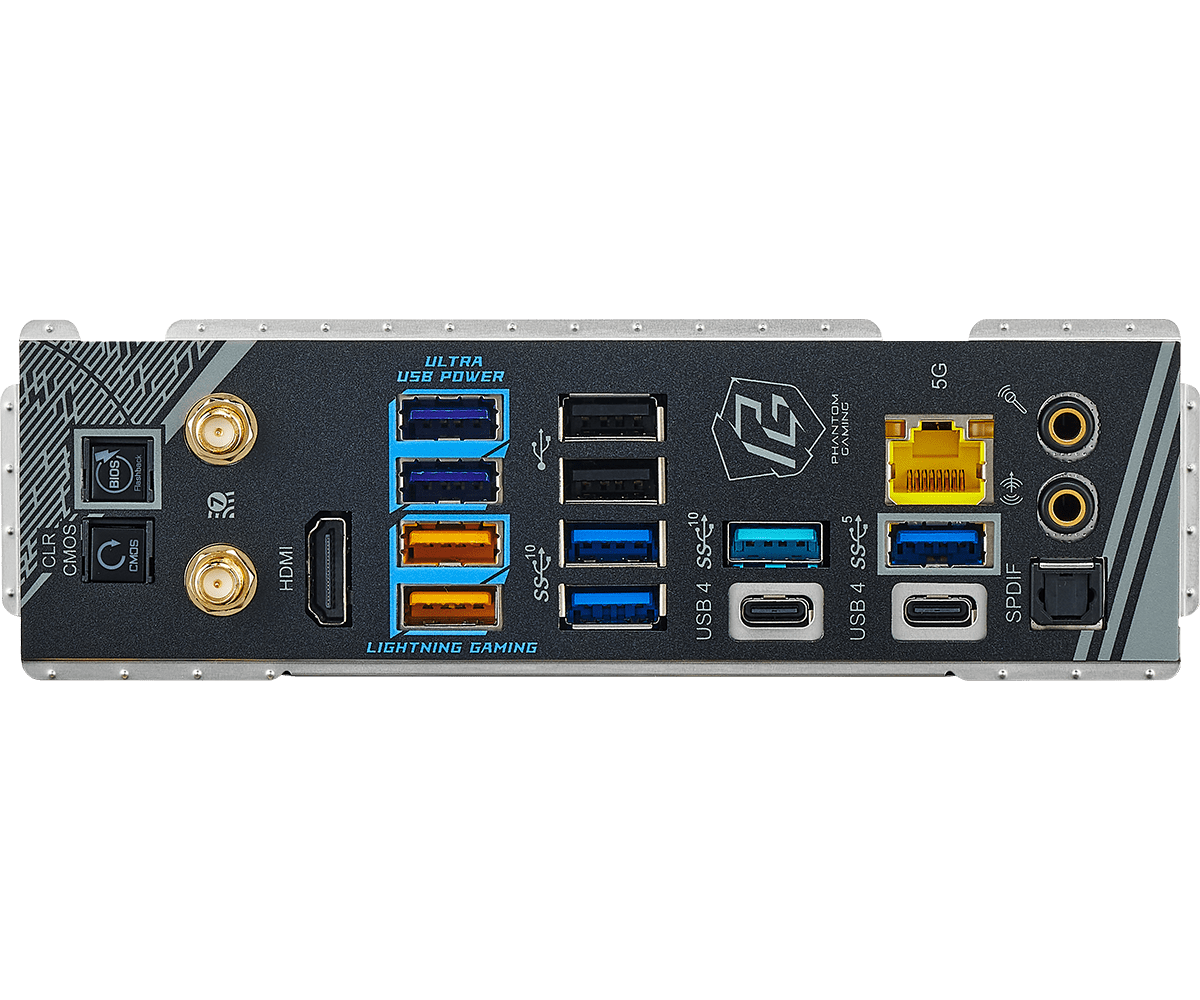

Placa de Baza ASROCK X870E NOVA WIFI AM5, 4x DDR5, 1x HDMI 2x USB4, 1x PCIE 5.0 x16 1x PCIE 3.0 x1 1x PCIE 3.0 x16, 6x M.2, 4x SATA 6GB/s, ATX

Specificație: Placa de bază ASRock X870E NOVA WIFI AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI
Wi-FI	Yes
USB3	4-8
PCI-Ex1	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Processor manufacturer	AMD
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
PCI Express x16 (Gen 3.x) slots	1
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Supported storage drive types	HDD & SSD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
Number of M.2 (M) slots	1
S/PDIF out port	Yes
HDCP	Yes
VGA (D-Sub) ports quantity	0
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	X870E
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	6
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
ECC сompatibility	ECC & Non-ECC
Number of CPU fan connectors	2
RGB LED pin header	Yes
Motherboard form factor	ATX
Antenna included	Yes
USB 3.2 Gen 2x2 connectors	1
Ethernet interface type	5 Gigabit Ethernet
Clear CMOS button	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of storage drives supported	8
RAID levels	0, 1, 10
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Number of chassis fan connectors	3
Audio Chip	Realtek ALC4082
USB4 Gen 2x2 ports quantity	2
Motherboard chipset	AMD X870E
Supported memory clock speeds	8200 MHz
LAN controller	Realtek RTL8126
MB-Format	ATX
RAM-Slots	4
MB-Socket	AM5
PCI-Ex16	2
Microphone in	Yes
Bluetooth version	5.4
Cables included	SATA
Width	305 mm
Depth	244 mm
Certification	– FCC, CE – ErP/EuP ready
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be)
Producator	ASROCK
Garantie	36
