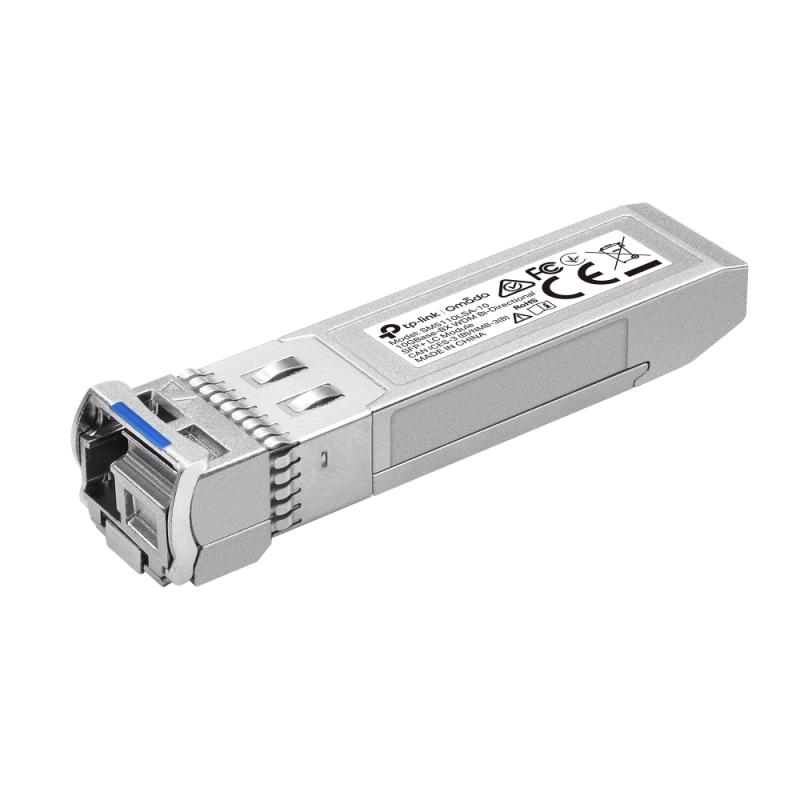

Omada 10Gbase-BX Single-Mode WDM Bi-Directional SFP+ Module SPEC: LC/UPC Connector,

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Omada 10Gbase-BX Single-Mode WDM Bi-Directional SFP+ Module SPEC: LC/UPC Connector, TX:1330nm/RX:1270nm, Single-mode, 10 km

Specificație: Omada 10Gbase-BX Single-Mode WDM Bi-Directional SFP+ Module SPEC: LC/UPC Connector,

Switch-CM-Type	SFP
Storage relative humidity (H-H)	5 – 90%
Maximum operating temperature	70 °C
Hot-swap	Yes
Minimum operating temperature	0 °C
SFP transceiver type	Fiber optic
Single-mode fiber (SMF) supported	Yes
Fiber cable diameters supported (core/cladding)	9/125 µm
Maximum transfer distance	10000 m
Input voltage	3.3 V
Interface type	SFP+
Fiber optic connector	LC (UPC)
Tx wavelength (max)	1330 nm
Networking standards	IEEE 802.3ae
Data transfer rate	10300 Mbit/s
Maximum data transfer rate (2.4 GHz)	10312 Mbit/s
Rx wavelength (max)	1270 nm
Product colour	Silver
Storage temperature (T-T)	-40 – 85 °C
Height	12 mm
Depth	14 mm
Operating temperature (T-T)	0 – 70 °C
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Width	57 mm
Producator	TP-LINK
Garantie	60
